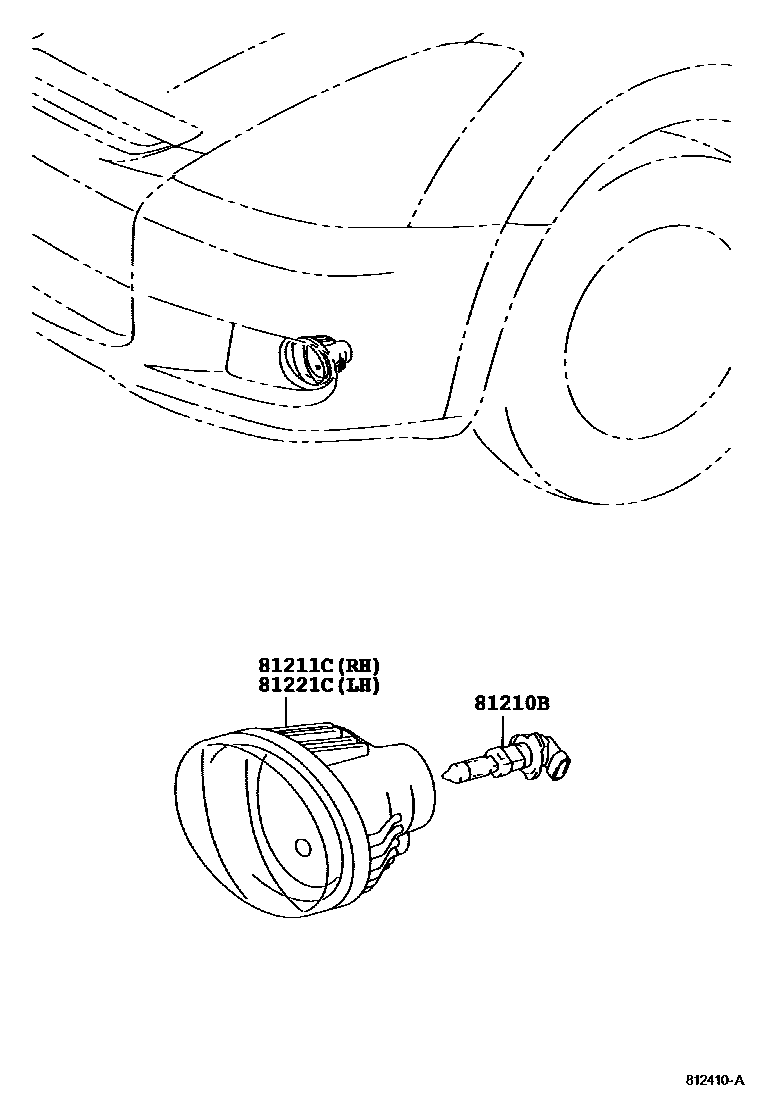

Toyota WISH — FOG LAMP

0001 1 0002 1 0003 1 0004 1

81210BBULB, FOG LAMP

main90981-13018iANE1#..TAIW200408-200703

12V 55W,HALOGEN

main90981-13047iANE11..TH200312-200910

12V 51W,HALOGEN

main90981-13075iANE1#..TAIW200908-200909

12V 55W,HALOGEN

main90981-13075iANE1#..TAIW200703-200909

12V 55W,HALOGEN,PHILIPS

main90981-13081iANE1#..TAIW200703-200909

12V 55W,HALOGEN,OSRAM

81211CLAMP UNIT, FOG LAMP, RH

main81211-12180iANE11..TH200512

main81211-52050iANE11200312-200505

S PACKAGE

sub81211-52052

main81211-52051iANE11..TH200505-200512

S PACKAGE

sub81211-52052

main81211-8C001iANE1#..TAIW200408-200703

81221CLAMP UNIT, FOG LAMP, LH

main81221-12180iANE11..TH200512

main81221-52050iANE11200312-200505

S PACKAGE

sub81221-52052

main81221-52051iANE11..TH200505-200512

S PACKAGE

sub81221-52052

main81221-8C001iANE1#..TAIW200408-200703

3 parts on this diagram · 4 diagrams in section
