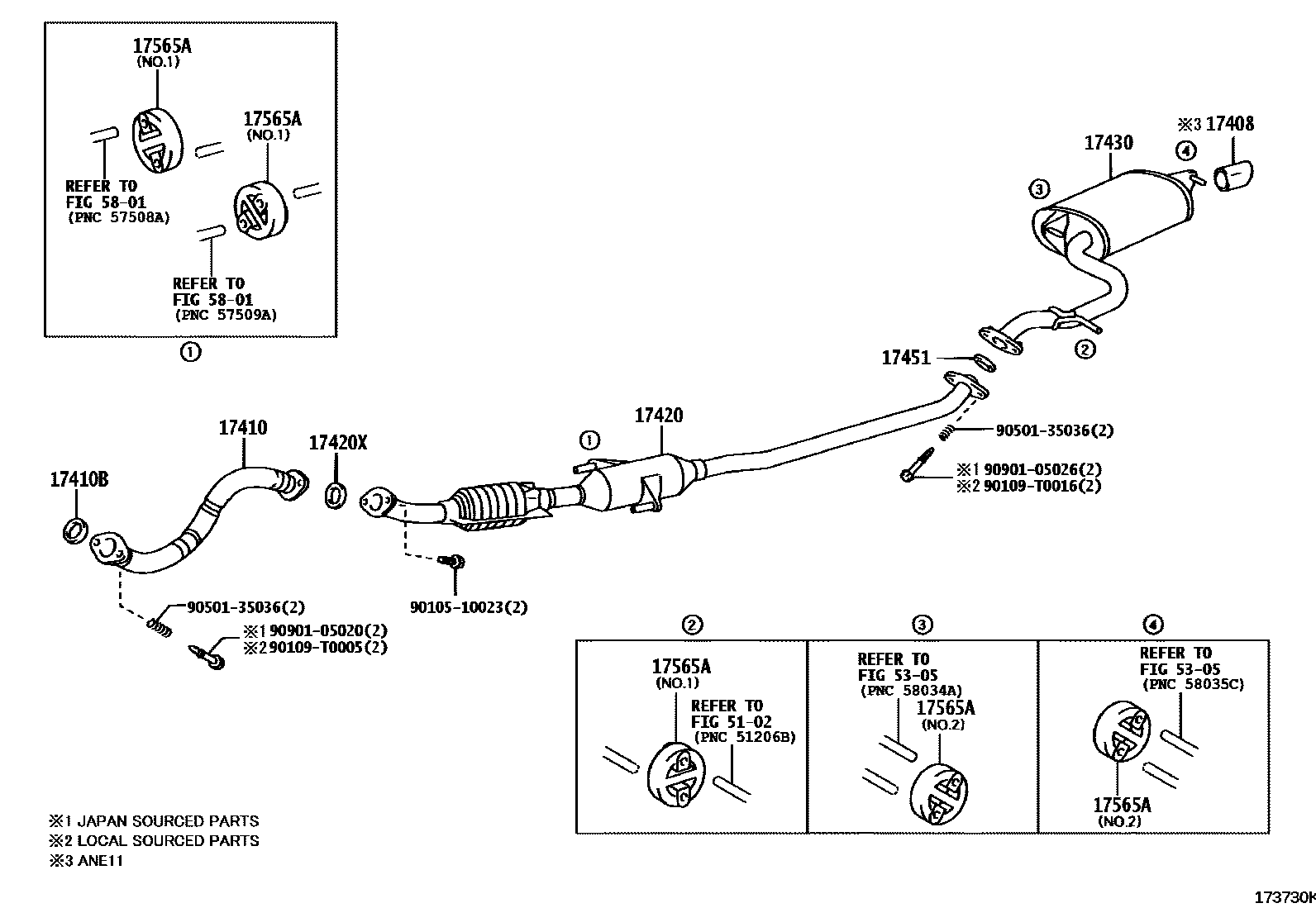

Toyota WISH — EXHAUST PIPE

0001 1 0002 1

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-74090i1AZFE..ANE11..TAIW200312-200703

17410PIPE ASSY, EXHAUST, FRONT

main17410-0H140i1AZFE..ANE1#..TAIW200408-200703

main17410-22610i1ZZFE..ZNE10200804-200903

main17410-28200i1AZFE..ANE11..TH200312-200512

17410BGASKET, EXHAUST PIPE

main17451-22070i1ZZFE..ZNE10200804-200903

main17451-74040i1AZFE..ANE1#..TAIW200312-200703

17420PIPE ASSY, EXHAUST, CENTER

main17420-0H150i1AZFE..ANE12200408-200703

main17420-0H230i1AZFE..ANE11..TH200512-200604

sub17420-0H231

main17420-0H230i1AZFE..ANE11..TH200509-200512

(L)

sub17420-0H231

main17420-0H231i1AZFE..ANE11..TH200605

main17420-28510i1AZFE..ANE11..TAIW200312-200605

(J)

sub17420-28511

main17420-28511i1AZFE..ANE11..TAIW200605-200703

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06078i1AZFE..ANE1#..TAIW200312-200703

17430PIPE ASSY, EXHAUST, TAIL

main17430-0H150i1AZFE..ANE12200408-200703

main17430-22430i1ZZFE..ZNE10200804-200903

main17430-28620i1AZFE..ANE11..TH200312-200605

sub17430-28621

main17430-28621i1AZFE..ANE11..TH200606

main17430-28800i1AZFE..ANE11..TAIW200511-200605

sub17430-28801

main17430-28801i1AZFE..ANE11..TAIW200606-200703

17451GASKET, EXHAUST PIPE

main17451-16030i1AZFE..ANE1#..TAIW200312-200703

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0H030i1AZFE..ANE11..TH200312-200512

NO.1

main17565-22030i1AZFE,1ZZFE..ANE1#,ZNE10..GEN,TAIW200408-200703

NO.1

main17565-22040i1ZZFE..ZNE10200804-200903

NO.2

main17565-28010i1AZFE..ANE1#..TAIW200408-200703

NO.2

main17565-74280i1AZFE..ANE11..TH200312-200512

NO.2

5102

5305

5801

9010510023

main90105-10023

90109T0005

main90109-T0005

90109T0016

main90109-T0016

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

17 parts on this diagram · 2 diagrams in section
