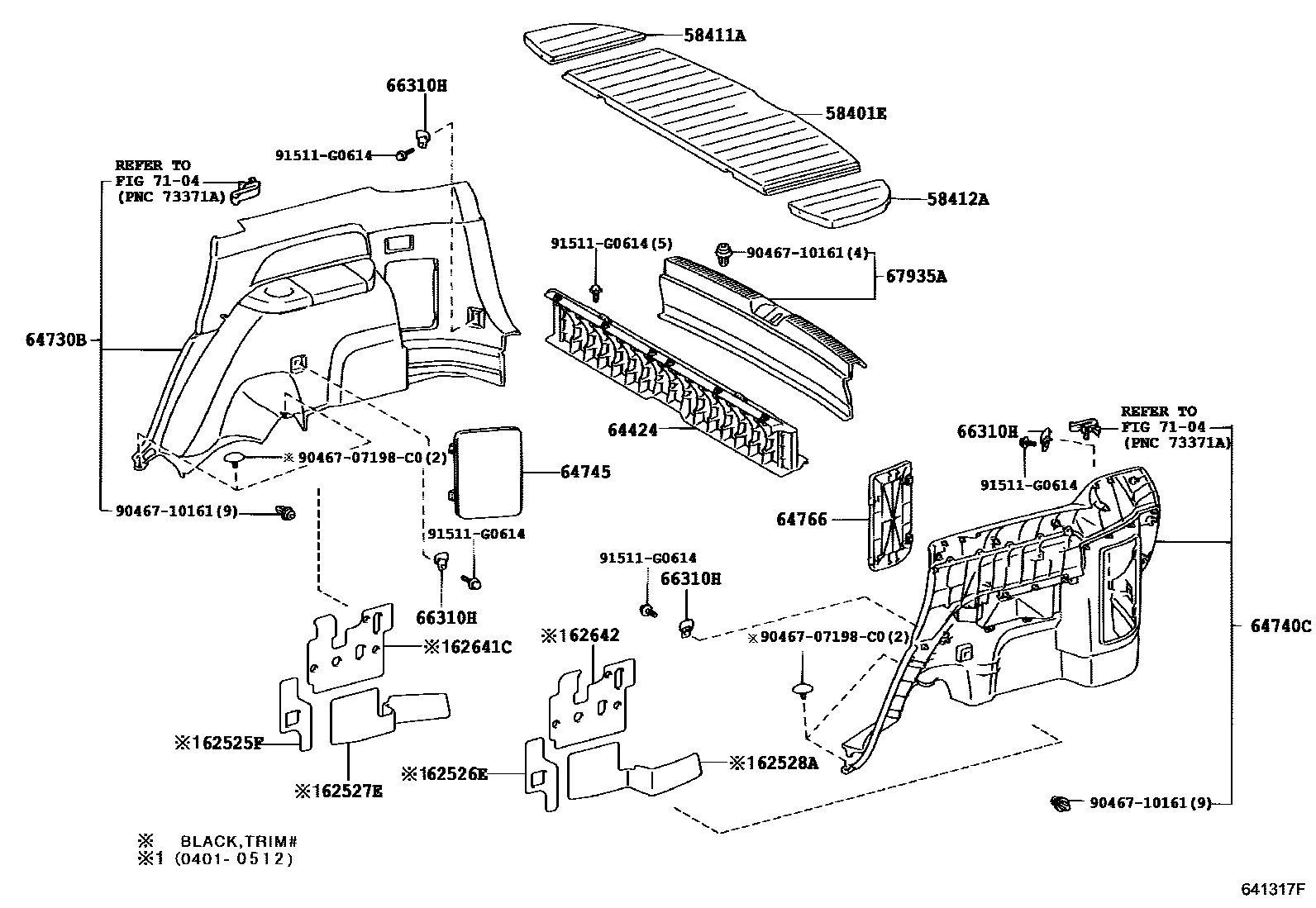

Toyota WISH — DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58401EBOARD SUB-ASSY, DECK

main58410-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main58410-0M010-B0iANE1#..TAIW200408-200909

DARK GRAY,TRIM1#

main58410-68010-B0iANE11..TH200312-200910

DARK GRAY,TRIM1#

58411ABOARD, DECK, NO.1

main58411-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main58411-0M010-B0iANE1#..TAIW200408-200909

DARK GRAY,TRIM1#

main58411-68010-B0iANE11..TH200312-200910

DARK GRAY,TRIM1#

58412ABOARD, DECK, NO.2

main58412-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main58412-0M010-B0iANE1#..TAIW200408-200909

DARK GRAY,TRIM1#

main58412-68010-B0iANE11..TH200312-200910

DARK GRAY,TRIM1#

62525FPAD, QUSRTER TRIM, FRONT RH

main62525-0M010iANE11..TH200401-200512

62526EPAD, QUARTER TRIM, FRONT LH

main62526-0M010iANE11..TH200401-200512

62527EPAD, QUARTER TRIM, LOWER RH NO.1

main62527-0M010iANE11..TH200401-200512

62528APAD, QUARTER TRIM, LOWER LH NO.1

main62528-0M010iANE11..TH200401-200512

62641CPAD, QUARTER TRIM, REAR RH

main62641-0M010iANE11..TH200401-200512

62642PAD, QUARTER TRIM, REAR LH

main62642-0M010iANE11..TH200401-200512

64424SEPARATOR, LUGGAGE ROOM BOX

main64424-0M010iANE1#..TAIW200408-200703

main64424-68010iANE11..TH200312-200512

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0M010-B0iANE1#..TAIW200408-200703

DK.GRAY,TRIM1#

main64730-0M010-E0iANE1#..20E,ZAER200408-200703

ORCHID BROWN,TRIM0#

main64730-0M020-B0iANE1#..TAIW200703-200909

DK.GRAY,TRIM1#

main64730-0M020-E0iANE12..20E200703-200909

ORCHID BROWN,TRIM0#

main64730-68010-B0iANE11..TH200312-200512

DK.GRAY,TRIM1#

main64730-68020-B0iANE11,ZNE10..RHD200512-200910

DK.GRAY,TRIM1#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0M010-B0iANE1#..TAIW200408-200703

DK.GRAY,TRIM1#

main64740-0M010-E0iANE1#..20E,ZAER200408-200703

ORCHID BROWN,TRIM0#

main64740-0M020-B0iANE1#..TAIW200703-200909

DK.GRAY,TRIM1#

main64740-0M020-E0iANE12..20E200703-200909

ORCHID BROWN,TRIM0#

main64740-68010-B0iANE11..TH200312-200512

DK.GRAY,TRIM1#

main64740-68020-B0iANE11,ZNE10..RHD200512-200910

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-0M010-A0iANE12..20E200408-200909

IVORY,TRIM0#

main64745-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main64745-68010-B0iANE11..TH200312-200512

DK.GRAY,TRIM1#

main64745-68020-B0iANE11,ZNE10..RHD200512-200910

DK.GRAY,TRIM1#

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main64766-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main64766-68010-B0iANE11..TH200312-200512

DK.GRAY,TRIM1#

main64766-68020-B0iANE11,ZNE10..RHD200512-200910

DK.GRAY,TRIM1#

66310HHOOK ASSY, ROPE

main66310-13010iANE1#..TAIW200312-200703

67935APLATE, BACK DOOR SCUFF

main67935-0M010-A0iANE1#..20E,ZAER200408-200909

IVORY,TRIM0#

main67935-0M010-B0iANE1#..TAIW200408-200909

DK.GRAY,TRIM1#

main67935-68010-B0iANE11..TH200312-200910

DK.GRAY,TRIM1#

7104

9046707198C0

main90467-07198C0

9046710161

main90467-10161

91511G0614

main91511-G0614

20 parts on this diagram · 3 diagrams in section
