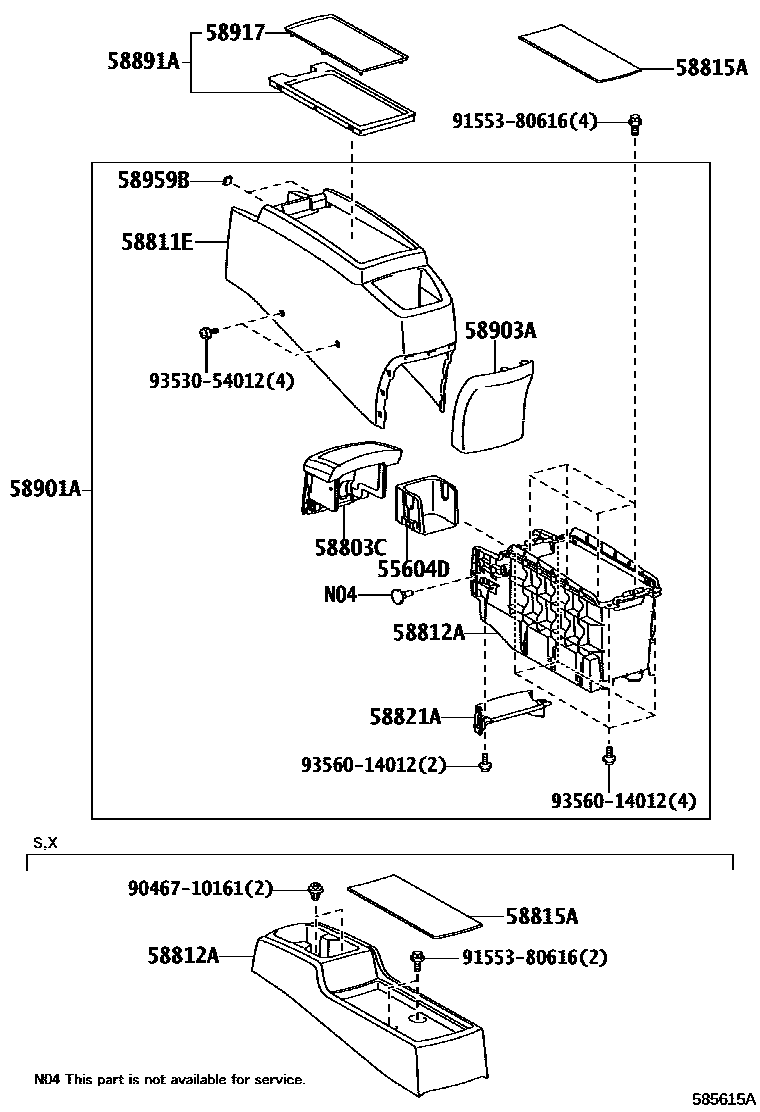

Toyota WISH — CONSOLE BOX & BRACKET

55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-68010iZGE21,22..CVFC200909-201204

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-68010-C0iZGE20..18X201204-201711

SINGAPORE SPEC,BLACK,TRIM1#

main58803-68010-E0iZGE20..18X201204-201711

GREGE,TRIM42

58811EBOX, CONSOLE, UPPER

main58811-68010-C0iZGE22201006-201204

BLACK,TRIM1#

main58811-68010-E0iZGE20..18X201204-201711

SINGAPORE SPEC,GREGE,TRIM4#

58812ABOX, CONSOLE, LOWER

main58812-68030-C0iZGE20..18X201204-201711

BLACK,TRIM1#,4#

main58812-68040iZGE20..18X201204-201711

SINGAPORE SPEC

58815ACARPET, CONSOLE BOX

main58815-68040iZGE21..20X200909-201005

main58815-68050supersedes 58815-68040iZGE21..20G200909-201005

58821APANEL, CONSOLE

main58821-68010-C0iZGE22201006-201204

BLACK,TRIM1#

main58821-68010-E0iZGE21..20G200909-201204

GREGE,TRIM4#

58891APANEL, EQUIPMENT SET, NO.1

main58891-68010-C0iZGE22201006-201204

BLACK,TRIM1#

main58891-68010-E0iZGE21..20G200909-201204

GREGE,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-68020-C0iZGE20..18X201204-201711

SINGAPORE SPEC,BLACK,TRIM1#

main58901-68020-E0iZGE20..18X201204-201711

GREGE,TRIM42

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-68010-C0iZGE22201006-201204

BLACK,TRIM1#

main58903-68010-E0iZGE20..18X201204-201711

SINGAPORE SPEC,GREGE,TRIM4#

58917MAT, BOX BOTTOM, NO.2

main58917-68010-C0iZGE22201006-201204

BLACK,TRIM1#

main58917-68010-E0iZGE21..20G200909-201204

GREGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60030×2iZGE20..18X201204

SINGAPORE SPEC

9046710161

main90467-10161

9155380616

main91553-80616

9353054012

main93530-54012

9356014012

main93560-14012

15 parts on this diagram · 1 diagram in section
