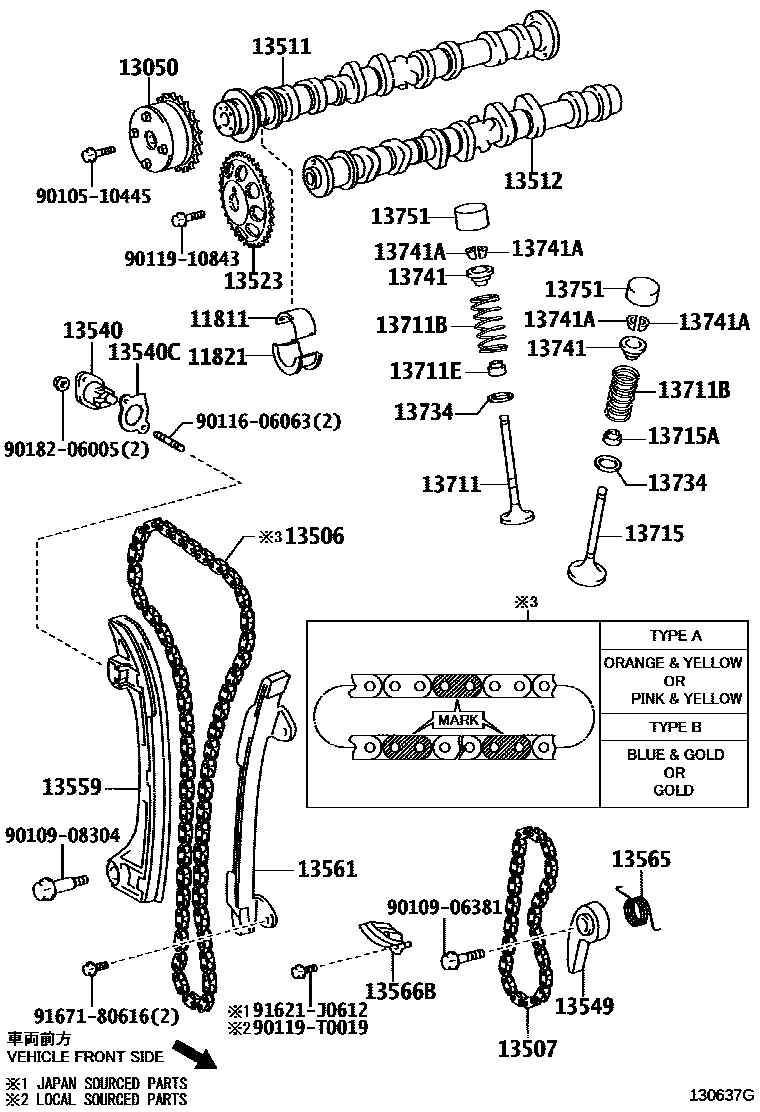

Toyota WISH — CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
11821BEARING, CAMSHAFT, NO.2
MARK 1,(L)
MARK 2,(L)
MARK 3,(L)
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
13506CHAIN SUB-ASSY
(L),T/P A:REF.ILLUST
(J),T/P A:REF.ILLUST
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
(J)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(J)
13565SPRING, CHAIN DAMPER
(L)
(J)
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
main90105-10445
9010906381
main90109-06381
9010908304
main90109-08304
9011606063
main90116-06063
9011910843
main90119-10843
90119T0019
main90119-T0019
9018206005
main90182-06005
91621J0612
main91621-J0612
9167180616
main91671-80616
33 parts on this diagram · 2 diagrams in section
