Toyota WISH — ARMREST & VISOR

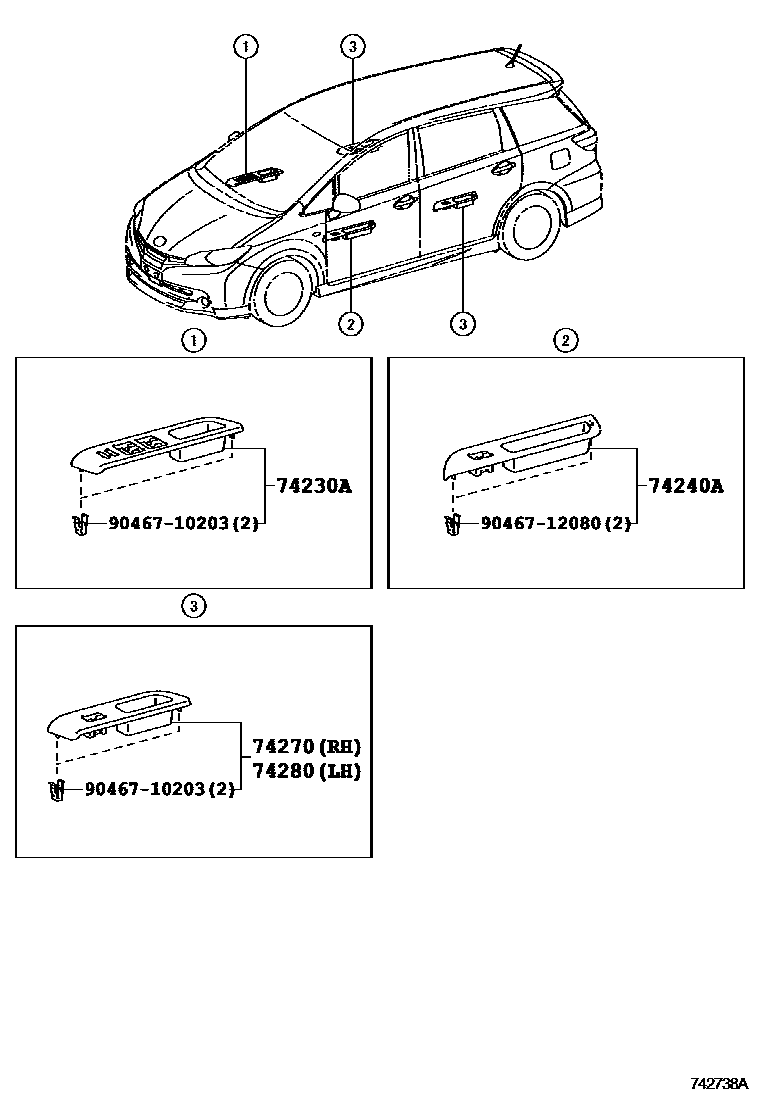

Parts diagram

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74231-68070i200909-201404

main74231-68071i201405-201711

main74231-68080i201006-201204

main74231-68090i200909-201204

main74231-68100i201204-201404

main74231-68101i201405-201711

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74232-68070i200909-201404

main74232-68071i201405-201711

main74232-68080i201006-201204

main74232-68090i200909-201204

main74232-68100i201204-201404

main74232-68101i201405-201711

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74271-68070i200909-201404

main74271-68071i201405-201711

main74271-68080i201006-201204

main74271-68090i200909-201204

main74271-68100i201204-201404

main74271-68101i201405-201711

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74272-68070i200909-201404

main74272-68071i201405-201711

main74272-68080i201006-201204

main74272-68090i200909-201204

main74272-68100i201204-201404

main74272-68101i201405-201711

9046710203

main90467-10203

9046712080

main90467-12080

6 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota WISH

This section contains 14 genuine Toyota parts for the ARMREST & VISOR system of the Toyota WISH. Key components include: PANEL ASSY, FRONT DOOR ARMREST BASE, RH, PANEL ASSY, FRONT DOOR ARMREST BASE, LH, PANEL ASSY, REAR DOOR ARMREST BASE, RH, PANEL ASSY, REAR DOOR ARMREST BASE, LH, VISOR ASSY, RH.
