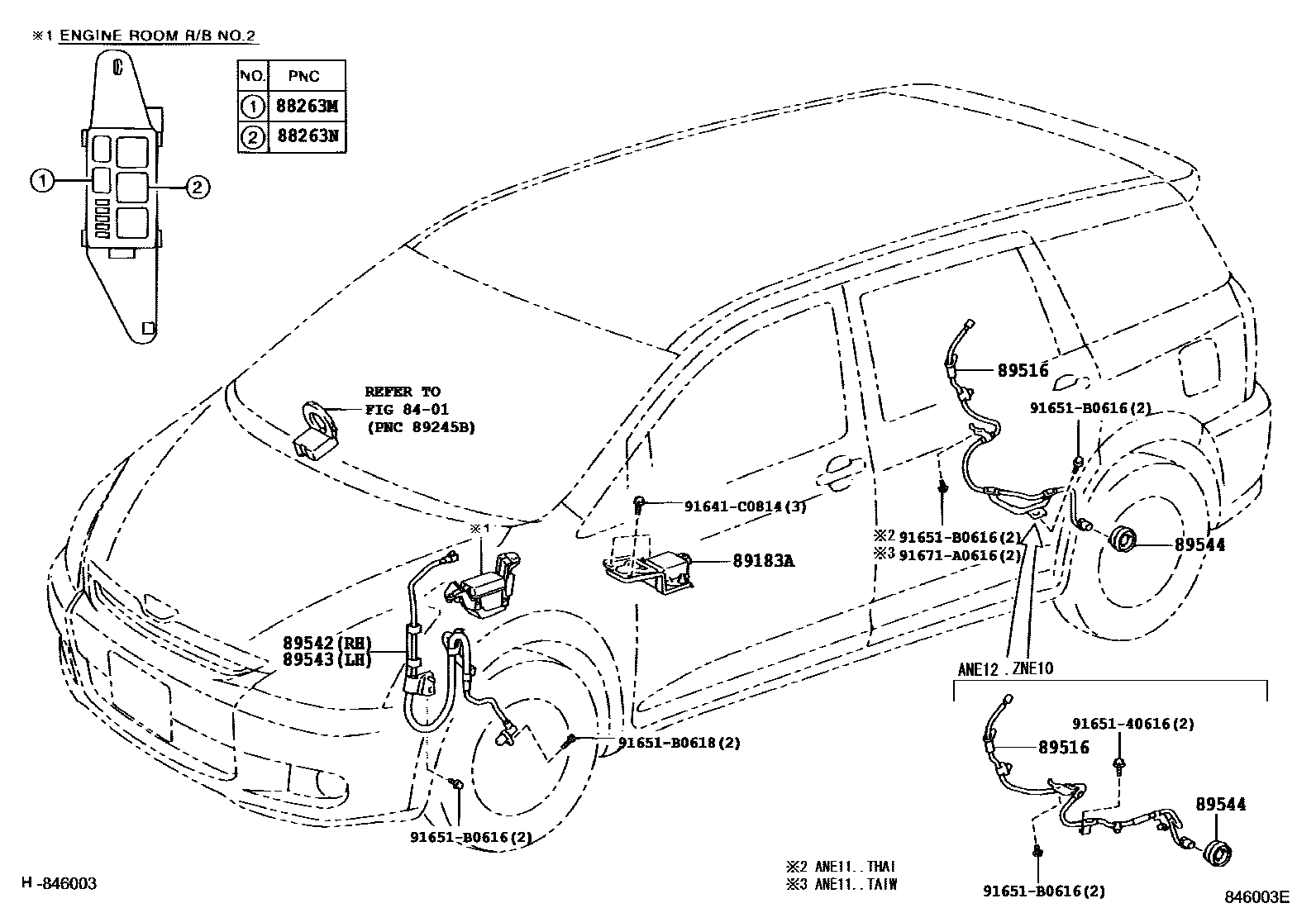

Toyota WISH — ABS & VSC

8401

88263MRELAY, ABS SOLENOID

main88263-32070iANE11..06S;ANE12..20E200312-200910

88263NRELAY, ABS MOTOR

main88263-21010iANE11..06S;ANE12..20E200312-200910

89183ASENSOR, YAWRATE

main89180-68010iANE11..TH200312-200703

89516WIRE, SKID CONTROL SENSOR

main89516-68010iANE12,ZNE10200408-200703

RH

main89516-68020iANE12200408-200703

LH

main89516-68030iANE11200312-200703

RH

main89516-68040iANE11..TAIW200312-200703

LH

89542SENSOR, SPEED, FRONT RH

main89542-20170iANE11..TH200312-200703

89543SENSOR, SPEED, FRONT LH

main89543-20170iANE11..TH200312-200703

89544SENSOR, SKID CONTROL

main89544-32040iANE12;ANE11..06S200312-200703

main89544-32040iANE1#,ZNE10200512-200910

KOYO

91641C0814

main91641-C0814

9165140616

main91651-40616

91651B0616

main91651-B0616

91651B0618

main91651-B0618

91671A0616

main91671-A0616

13 parts on this diagram · 1 diagram in section
