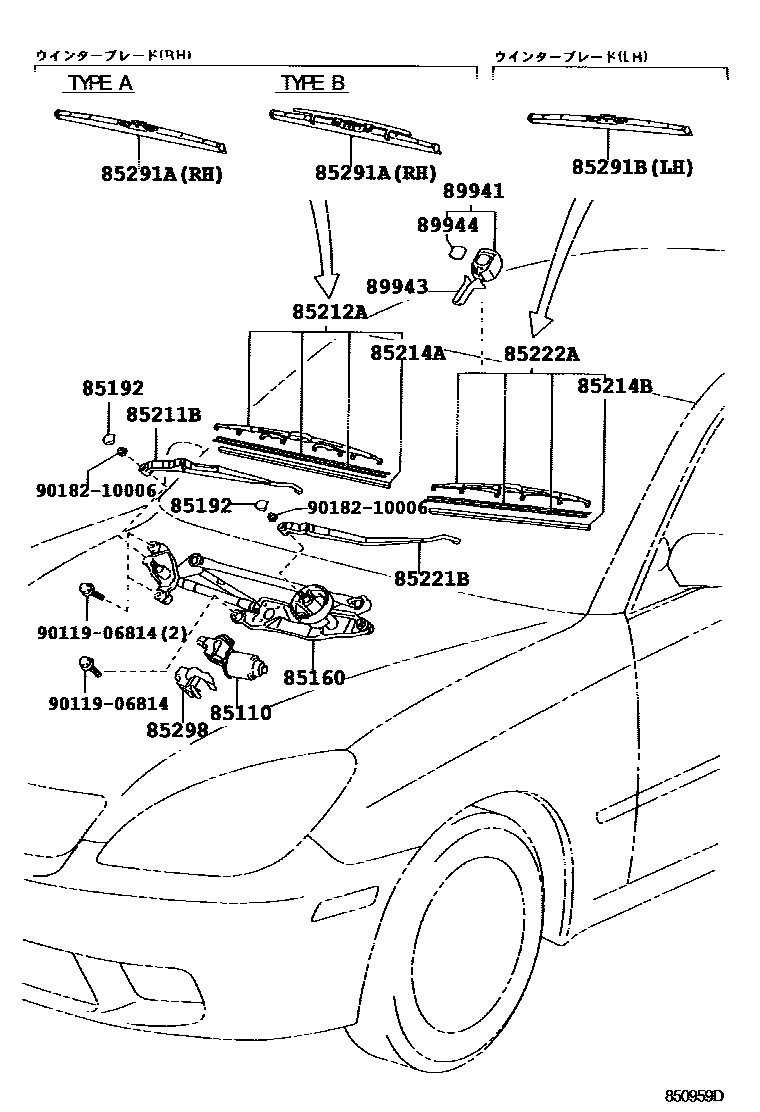

Toyota WINDOM — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33280i200107-200406

main85110-33290i200107-200406

85160LINK ASSY, WINDSHIELD WIPER

main85150-33200i200107-200406

main85150-33210i200107-200406

85192COVER, WINDSHIELD WIPER ARM

main85292-13010i200107-200406

85211BARM, FRONT WIPER, RH

main85211-33230i200107-200406

main85211-33240i200107-200406

85212ABLADE, FR WIPER, RH

main85212-24100i200410-200603

main85212-33190i200107-200410

85214ARUBBER, WIPER, RH

main85214-50100i200410-200603

main85214-50120i200107-200410

85214BRUBBER, WIPER, LH

main85214-24050i200410-200603

main85214-53050i200107-200410

85221BARM, FRONT WIPER, LH

main85221-33220i200107-200406

main85221-33230i200107-200406

85222ABLADE, FR WIPER, LH

main85222-24100i200410-200603

main85222-43020i200107-200410

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090i200107-200406

main85291-24100i200107-200406

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060i200107-200406

85298COVER, WIPER MOTOR

main85111-33020i200406

89941SENSOR, RAIN

main89941-33010i200107-200406

main89941-33011i200207-200210

89943COVER, RAIN SENSOR

main89943-33010i200107-200408

main89943-33030i200409

89944TAPE, RAIN SENSOR

main89944-33010i200107-200406

9011906814

main90119-06814

9018210006

main90182-10006

17 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota WINDOM

This section contains 17 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota WINDOM. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
