Toyota WINDOM — WINDSHIELD WIPER

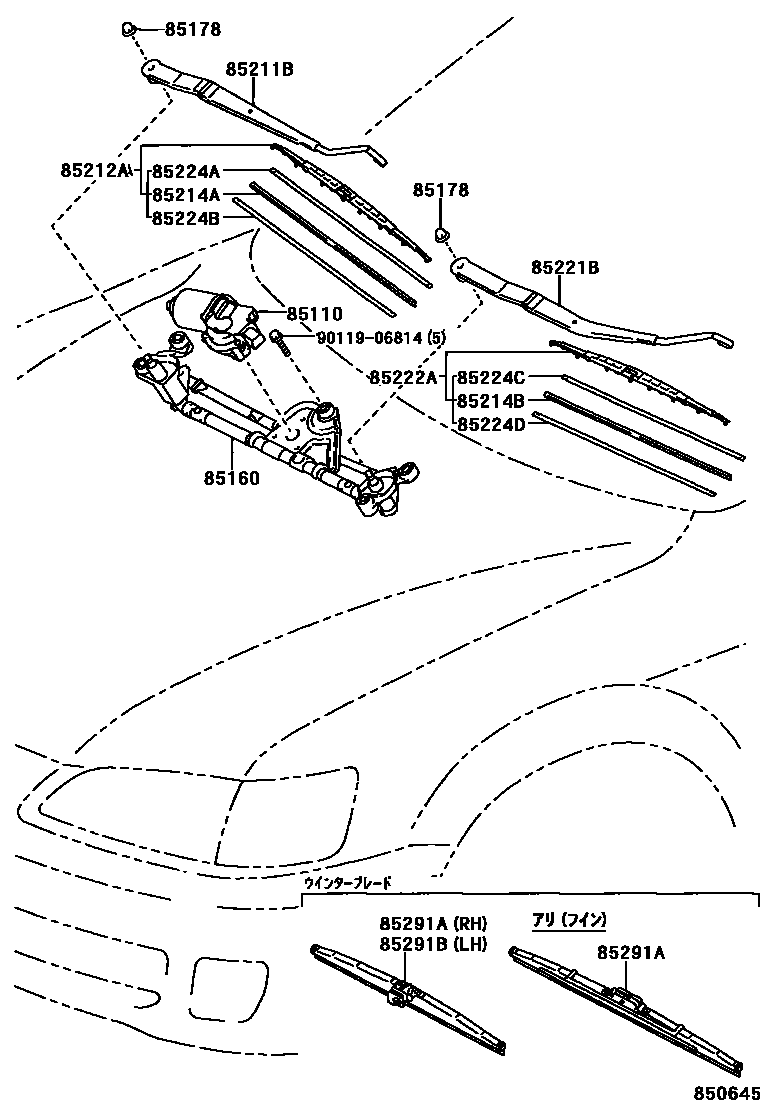

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33170i199608

main85110-33210i199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-33110i199608

main85150-33120i199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005i199608

85211BARM, FRONT WIPER, RH

main85211-33160i199608-200007

main85211-33161i200007

main85211-33170i199608-200007

main85211-33171i200007

85212ABLADE, FR WIPER, RH

main85212-33130i199608-199905

main85212-33170i199905

main85291-50030i199608-199908

85214ARUBBER, WIPER, RH

main85214-30350i199905

main85214-33110i199608-199905

85214BRUBBER, WIPER, LH

main85214-20350i199608-199905

main85214-30360i199905

85221BARM, FRONT WIPER, LH

main85221-33150i199608

main85221-33160i199608

85222ABLADE, FR WIPER, LH

main85222-30540i199905

main85222-33150i199608-199905

main85291-60020i199608-199908

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040i199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040i199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310i199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310i199608

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-33040i199908

main85291-50030i199908

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-60020i199908

9011906814

main90119-06814

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota WINDOM

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota WINDOM. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
