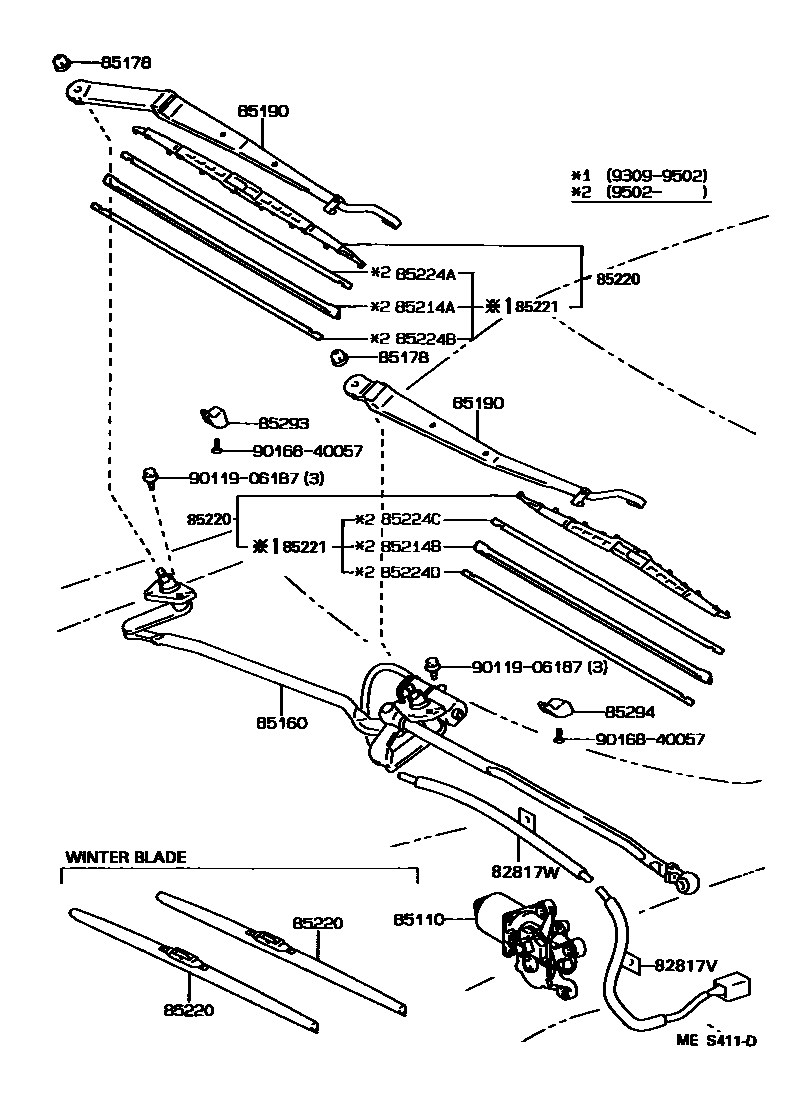

Toyota WINDOM — WINDSHIELD WIPER
82817VPROTECTOR, WIRING HARNESS
82817WPROTECTOR, WIRING HARNESS
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
85214ARUBBER, WIPER, RH
sub85214-40080
85214BRUBBER, WIPER, LH
85220BLADE ASSY, WINDSHIELD WIPER
sub85212-30301
sub85222-40070
sub85222-30381
sub85222-30381
sub85291-22080
85221BLADE, WINDSHIELD WIPER
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85293STEP, LINEAR WIPER, RH
85294STEP, LINEAR WIPER, LH
9011906187
main90119-06187
9016840057
main90168-40057
18 parts on this diagram · 1 diagram in section
