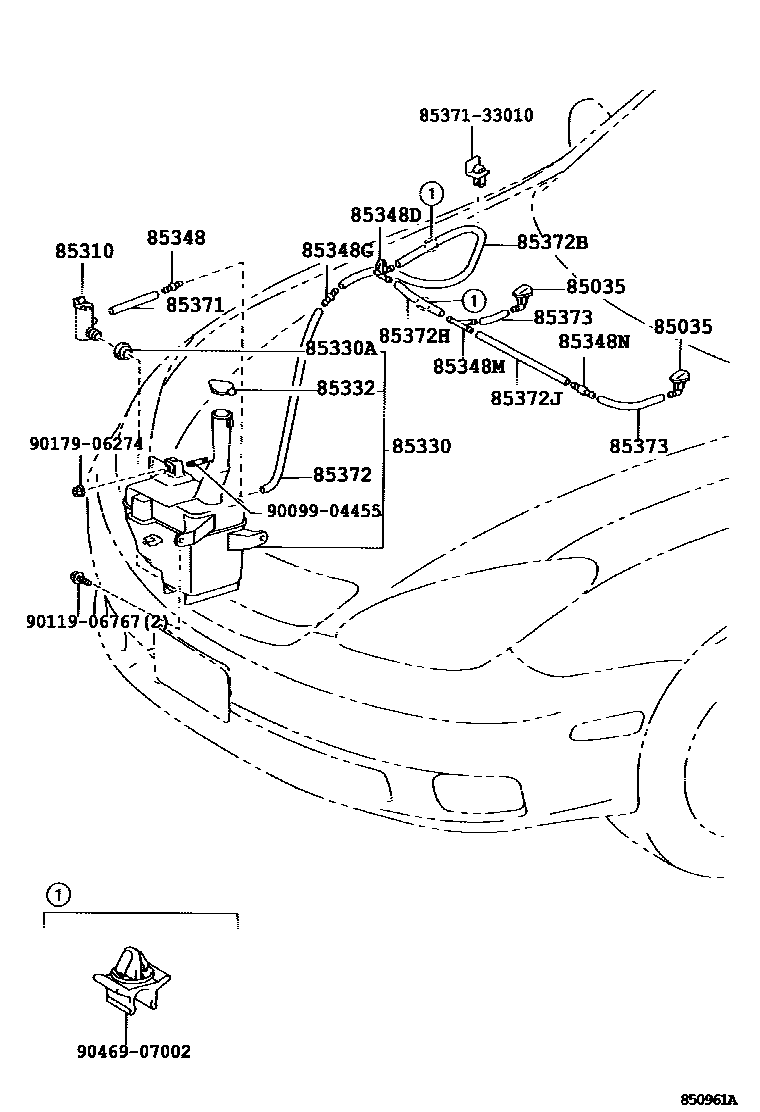

Toyota WINDOM — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-33060-A0×2iMCV30200107-200406

WHITE PEARL CS.,062

main85381-33060-B0×2iMCV30200107-200406

SILVER ME.,1C0

main85381-33060-B1×2iMCV30200406-200603

GRAY M.M.,1F5

main85381-33060-B2×2iMCV30200406-200603

SILVER ME.,1F7

main85381-33060-C0×2iMCV30200107-200406

BLACK,202

main85381-33060-D0×2iMCV30200406-200603

DK.RED MC.,3Q2

main85381-33060-H0×2iMCV30200107-200406

LT. AQUA M.M.,772

main85381-33060-J0×2iMCV30200107-200406

DARK BLUE MC.,8P8

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iMCV30200107-200406

85330JAR ASSY, WINDSHIELD WASHER

main85315-33270iMCV30200107-200406

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMCV30200107-200406

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iMCV30200107-200406

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iMCV30200406

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-16160iMCV30200107-200406

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iMCV30200107-200406

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-12250iMCV30200107-200406

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iMCV30200107-200406

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iMCV30200107-200406

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iMCV30200107-200406

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iMCV30200107-200406

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-59175iMCV30200107-200406

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iMCV30200107-200406

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iMCV30200107-200406

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904455

main90099-04455

9011906767

main90119-06767

9017906274

main90179-06274

9046907002

main90469-07002

21 parts on this diagram · 1 diagram in section
