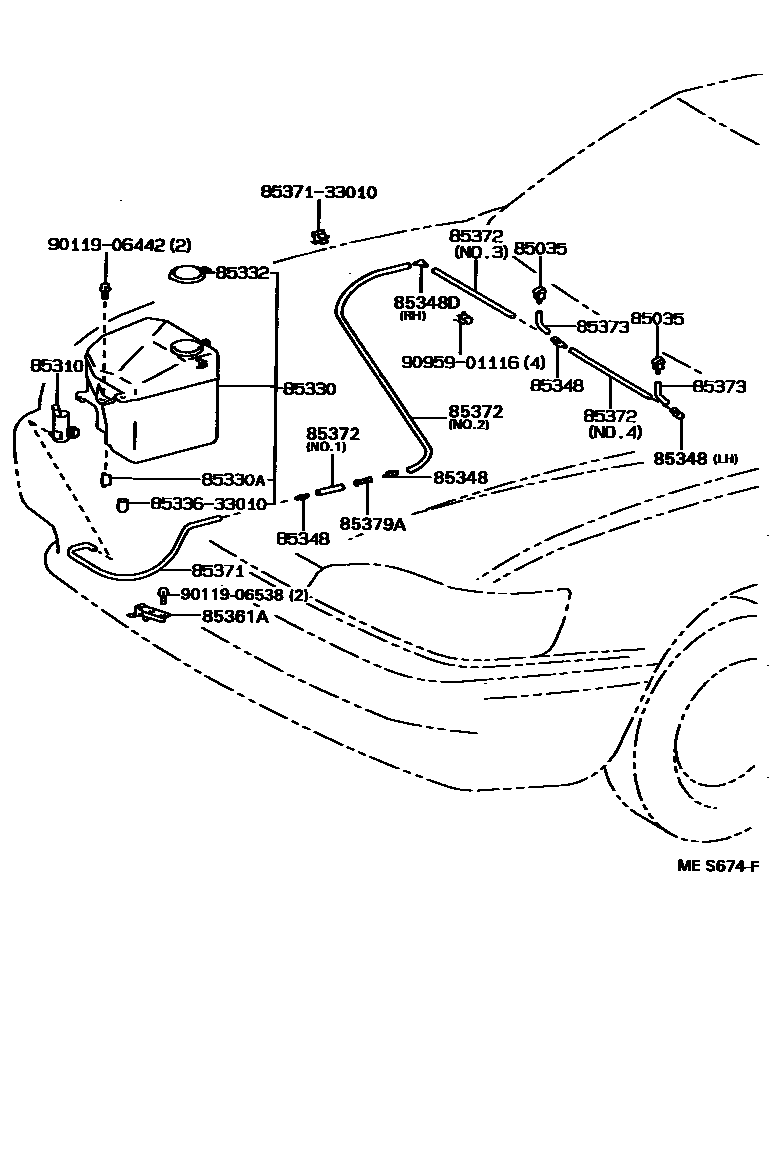

Toyota WINDOM — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85385-33010-A0×2iVCV1#199308-199608

SUPER WHITE PEARL M.,051

main85385-33010-C0×2iVCV1#199508-199608

BLACK,202 ,8K0

main85385-33010-D0×2iVCV10199306-199308

DARK MAUVE MICA M.,3K1

main85385-33010-D2×2iVCV1#199306-199608

LT GRAYISH ROSE M OP,3K7

main85385-33010-G0×2iVCV10199306-199308

DARK GREEN MICA,6M1

main85385-33040-A0×2iVCV10199301-199303

sub85381-23010

main85385-33040-B0×2iVCV11199504-199507

sub85381-23010

main85385-33040-C0×2iVCV11199508-199608

2.5 LEXTER,BLACK,202

sub85381-23010

main85385-33040-D0×2iVCV10199110-199306

DK.MAUVE MC.ME,3K1

sub85381-23010

main85385-33040-D1×2iVCV10199110-199308

RED MC.,3K3

sub85381-23010

main85385-33040-D2×2iVCV10199110-199306

LT GRAYISH ROSE M.OP,3K7

sub85381-23010

main85385-33040-E0×2iVCV10199110-199308

BEIGE MC.ME.,4J1

sub85381-23010

main85385-33040-E1×2iVCV1#199308-199608

BEIGE ME,4M9

sub85381-23010

main85385-33040-G0×2iVCV10199110-199306

DK.GREEN MC.,6M1

sub85381-23010

main85385-33070×2iVCV1#199408-199608

sub85381-12060

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20170iVCV10199110-199205

main85310-20210iVCV1#199110-199608

sub85330-10280

main85330-12280iVCV1#199205-199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-33010iVCV10199110-199308

main85315-33120iVCV1#199308-199608

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iVCV1#199110-199608

85332CAP, WINDSHIELD WASHER JAR

main85316-22190iVCV10199208-199302

sub85316-12290

main85316-33010iVCV10199110-199208

main85316-33020iVCV10199302-199308

main85316-33120iVCV1#199308-199608

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iVCV1#199308-199408

main85355-20200iVCV1#199408-199608

main85378-33030iVCV10199110-199308

3-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-33070iVCV10199110-199308

sub85376-10250

main85377-33030iVCV1#199308-199608

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85361-33010iVCV10199110-199308

sub85361-33011

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iVCV10199110-199308

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iVCV10199212-199308

main90099-33723iVCV10199110-199212

main90099-33868iVCV10199110-199308

sub90099-33803

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iVCV1#199110-199608

85379ASPRING, WINDSHIELD WASHER HOSE

main85376-33070iVCV10199110-199308

8533633010SWITCH ASSY, RESERVE TANK LEVEL WARNING

main85336-33010

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906442

main90119-06442

9011906538

main90119-06538

9095901116

main90959-01116

17 parts on this diagram · 2 diagrams in section
