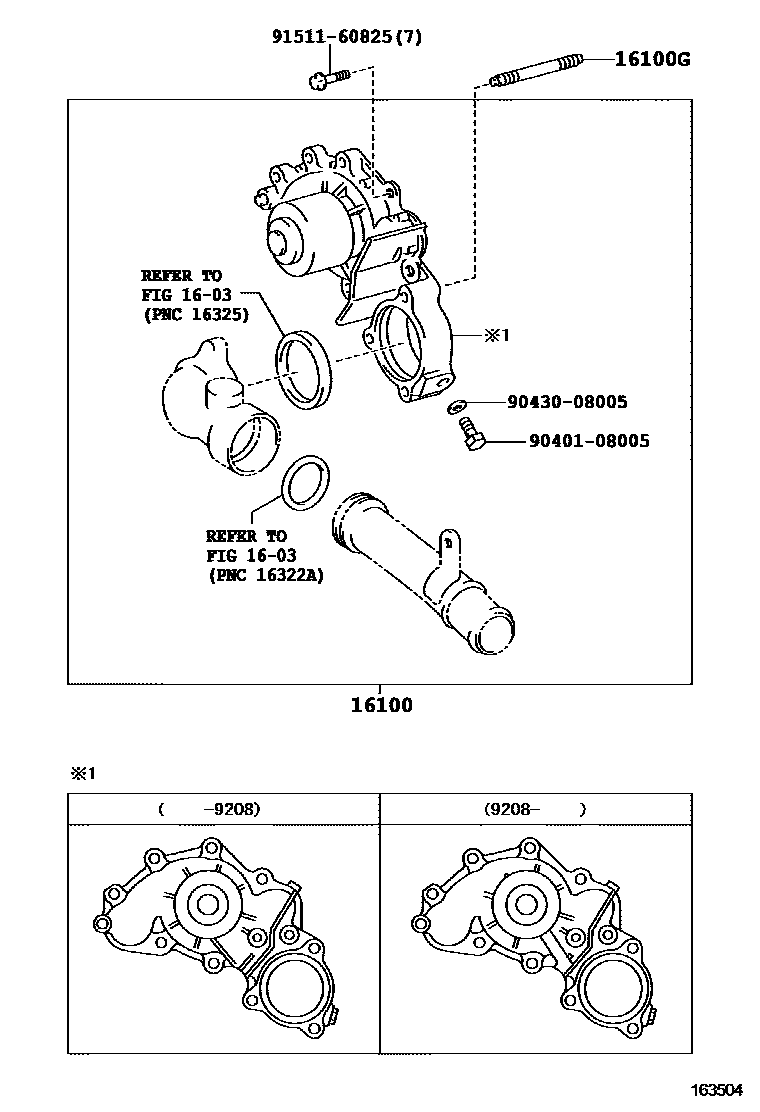

Toyota WINDOM — WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-69305i199110-199208

main16100-69335i199208-199608

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-08270×3i199110-199608

9040108005

main90401-08005

9043008005

main90430-08005

9151160825

main91511-60825

6 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota WINDOM

This section contains 6 genuine Toyota parts for the WATER PUMP system of the Toyota WINDOM. Key components include: RADIATOR & WATER OUTLET, PUMP ASSY, ENGINE WATER, BOLT, STUD(FOR WATER PUMP SET).
