Toyota WINDOM — STEERING WHEEL

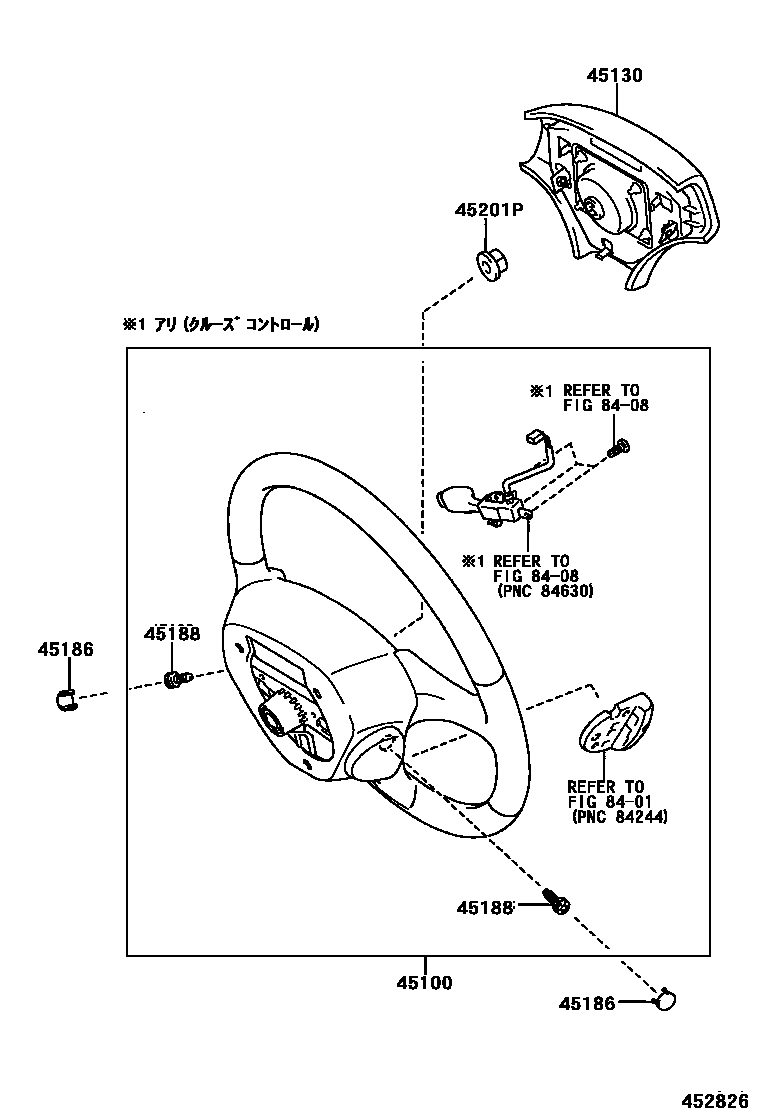

Parts diagram

45100WHEEL ASSY, STEERING

main45100-0W110-C0i200107-200406

main45100-0W110-E0i200107-200406

main45100-33470-C0i200107-200406

main45100-33470-E0i200107-200406

main45100-33520-D0i200406-200603

main45100-33520-E3i200406-200603

main45100-33530-C0i200406-200603

main45100-33530-E3i200406-200603

45130BUTTON ASSY, HORN

main45130-33360-C0i200107-200208

BLACK,TRIM2#

main45130-33360-E0i200107-200208

SANDAL WOOD,TRIM0#

main45130-33361-C0i200208-200406

BLACK,TRIM2#

main45130-33361-E0i200208-200406

SANDAL WOOD,TRIM0#

main45130-33450-C0i200406-200603

BLACK,TRIM2#

main45130-33450-E0i200406-200603

SANDAL WOOD,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33040-C0i200406-200603

BLACK,TRIM2#

main45186-33040-E0i200406-200603

SANDAL WOOD,TRIM0#

main45186-33060-C0i200406-200603

main45186-33060-E0i200406-200603

main45186-44010-C0i200107-200406

BLACK,TRIM2#

main45186-44010-E4i200107-200406

SANDAL WOOD,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200406

main90148-60007×2i200107-200406

45201PNUT, STEERING WHEEL SET

main90179-12071i200107-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 2 diagrams in section

STEERING WHEEL for Toyota WINDOM

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota WINDOM. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
