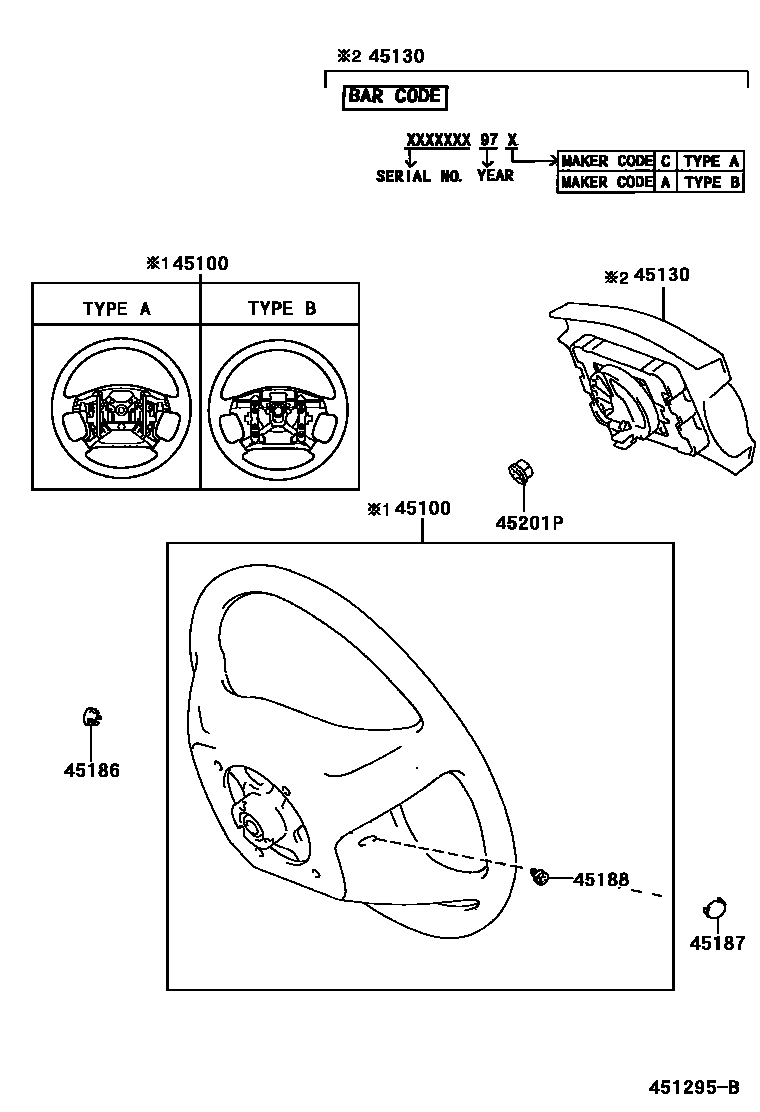

Toyota WINDOM — STEERING WHEEL
45100WHEEL ASSY, STEERING
45130BUTTON ASSY, HORN
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
BLACK,TRIM2#
DK.SAGE,TRIM6#
OAK,TRIM0#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
45187COVER, STEERING WHEEL, LOWER NO.3
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
45188SCREW, STEERING WHEEL PAD ATTACHING
45201PNUT, STEERING WHEEL SET
6 parts on this diagram · 6 diagrams in section
STEERING WHEEL for Toyota WINDOM
This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota WINDOM. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
