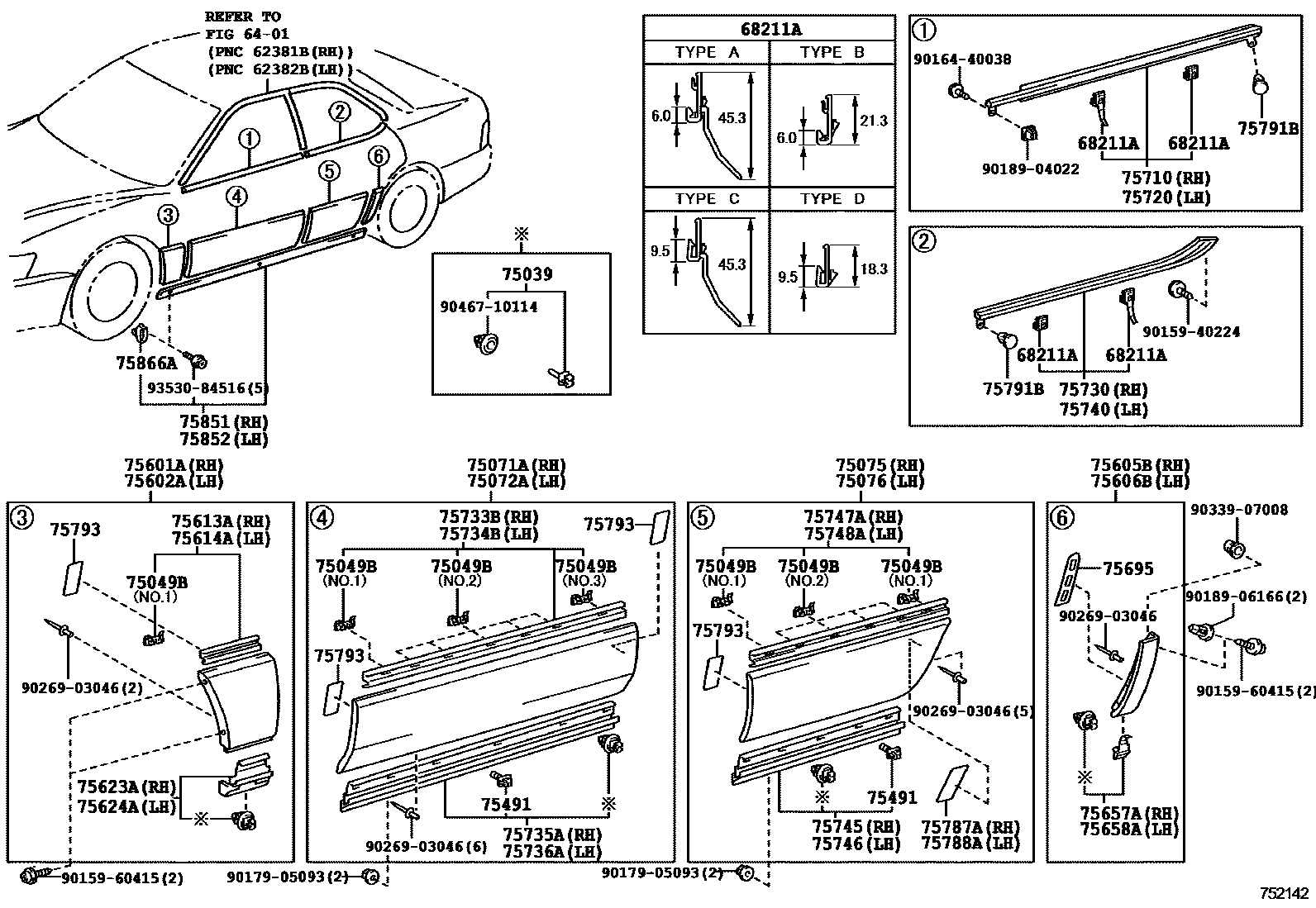

Toyota WINDOM — SIDE MOULDING
6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
68211ACLIP, DOOR BELT MOULDING
TYPE A
TYPE B
TYPE C
75039CLIP SUB-ASSY, OUTSIDE MOULDING
QUARTER PANEL
FENDER PANEL
DOOR PANEL
75049BCLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202
LT GRAYISH BEIGE M,4J1
DARK GRAY M,6M1 ,8K0
DK. GRAY ME.,202
DK. GRAY ME.,6M1 ,8K0
2.5 LEXTER,LT. GRAYISH BEIGE ME,051
DK. GRAYISH PURPLE M,3K7
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202
DARK GRAY M,6M1 ,8K0
DK. GRAY ME.,202
2.5 LEXTER,DK. GRAY ME.,6P2; DK. GRAY ME.,6P2 ,8K0
2.5 LEXTER,LT. GRAYISH BEIGE ME,051
DK. GRAYISH PURPLE M,3K7
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
DK GRAYISH PURPLE M,3K1 ,3K7
DARK GRAY M,202 ,3K3
LT GRAYISH BEIGE M,4J1
DARK GRAY M,6M1
DK. GRAY ME.,202
DK. GRAY ME.,6M1 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202
LT GRAYISH BEIGE M,4J1
DARK GRAY M,6M1 ,8K0
DK. GRAY ME.,202
2.5 LEXTER,GRAY M.M.,176
2.5 LEXTER,DK. GRAY ME.,6P2; DK. GRAY ME.,6P2 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75491CLIP, OUTSIDE MOULDING, NO.6
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202
DARK GRAY M,6M1 ,8K0
DK. GRAY ME.,202
2.5 LEXTER,GRAY M.M.,176
2.5 LEXTER,DK. GRAY ME.,6P2; DK. GRAY ME.,6P2 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202 ,3K3
DARK GRAY M,6M1
DK. GRAY ME.,202
2.5 LEXTER,GRAY M.M.,176
2.5 LEXTER,DK. GRAY ME.,6P2; DK. GRAY ME.,6P2 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
DK GRAYISH PURPLE M,3K7
DARK GRAY M,202
LT GRAYISH BEIGE M,4J1
DARK GRAY M,6M1
DK. GRAY ME.,202
2.5 LEXTER,GRAY M.M.,176
2.5 LEXTER,DK. GRAY ME.,6P2; DK. GRAY ME.,6P2 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
DK GRAYISH PURPLE M,3K1 ,3K7
DARK GRAY M,202 ,3K3
LT GRAYISH BEIGE M,4J1
DARK GRAY M,6M1
DK. GRAY ME.,202
DK. GRAY ME.,6M1 ,8K0
LT. GRAYISH BEIGE ME,051 ,4M9
DK. GRAYISH PURPLE M,3K7
75613AMOULDING, FRONT FENDER, FRONT RH
75614AMOULDING, FRONT FENDER, FRONT LH
75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH
75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH
75657AMOULDING, QUARTER PANEL, LOWER REAR RH
75658AMOULDING, QUARTER PANEL, LOWER REAR LH
75695PAD, QUARTER OUTSIDE MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75733BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR RH
75734BMOULDING, FRONT DOOR, OUTSIDE UPPER REAR LH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75747AMOULDING, REAR DOOR OUTSIDE, LOWER REAR RH
75748AMOULDING, REAR DOOR OUTSIDE, LOWER REAR LH
75787APAD, FRONT DOOR OUTSIDE MOULDING, RH
75788APAD, FRONT DOOR OUTSIDE MOULDING, LH
75791BCLIP, BELT MOULDING SIDE
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75851MOULDING, ROCKER PANEL, RH
75852MOULDING, ROCKER PANEL, LH
75866ARETAINER, ROCKER PANEL MOULDING
9015940224
main90159-40224
9015960415
main90159-60415
9016440038
main90164-40038
9017905093
main90179-05093
9018904022
main90189-04022
9018906166
main90189-06166
9026903046
main90269-03046
9033907008
main90339-07008
9046710114
main90467-10114
9353084516
main93530-84516
49 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota WINDOM
This section contains 49 genuine Toyota parts for the SIDE MOULDING system of the Toyota WINDOM. Key components include: INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING, CLIP, DOOR BELT MOULDING, CLIP SUB-ASSY, OUTSIDE MOULDING, CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2, MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH.
