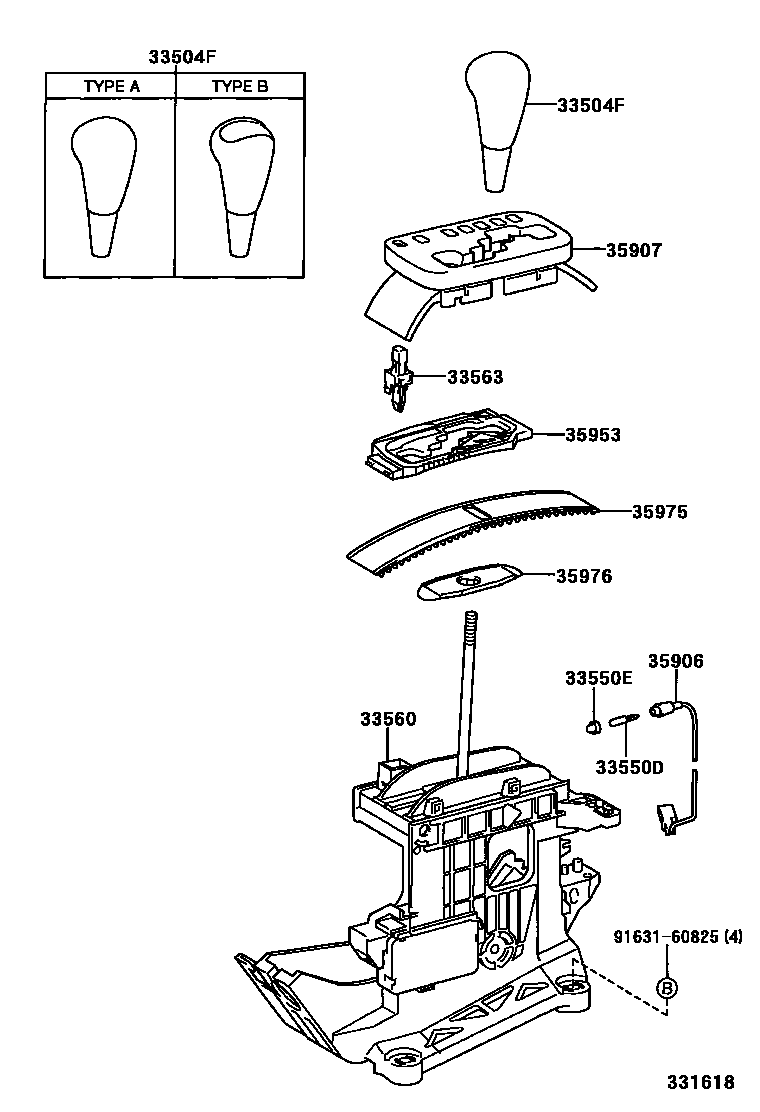

Toyota WINDOM — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30281-C0i200406-200603

main33504-30281-E0i200107-200406

main33504-30310-C3i200107-200406

main33504-30310-C9i200406-200603

main33504-30310-E1i200107-200406

main33504-30310-E7i200406-200603

33550DBULB, POSITION INDICATOR LAMP

main90981-11040i200406

33550ECAP, POSITION INDICATOR LAMP

main90339-04049i200107-200406

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33060i200107-200209

main33560-33061i200209-200406

33563BUTTON, SHIFT LOCK RELEASE

main33563-33170i200107-200406

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33090i200107-200406

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-33020i200107-200406

35953GUIDE, POSITION INDICATOR LIGHT

main35953-33020i200107-200406

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33070i200107-200406

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-33070i200107-200406

9163160825

main91631-60825

11 parts on this diagram · 2 diagrams in section

SHIFT LEVER & RETAINER for Toyota WINDOM

This section contains 22 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota WINDOM. Key components include: KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL, BUTTON, SHIFT LOCK RELEASE.
