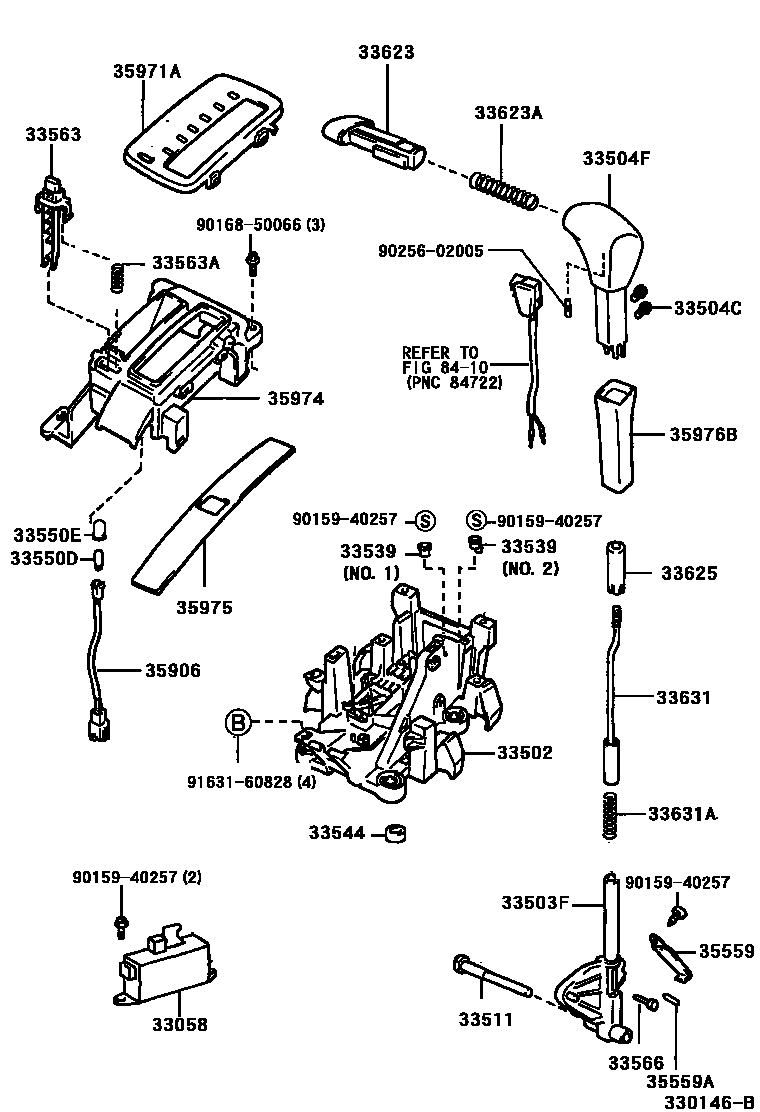

Toyota WINDOM — SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504CSCREW (FOR SHIFT LEVER KNOB SETTING)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
DK.SAGE,TRIM6#
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33566PIN, SHIFT LEVER STOP
33623BUTTON, SHIFT LEVER KNOB
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33631ROD, DETENT
33631ASPRING, COMPRESSION (FOR DETENT ROD)
35559SPRING, MANUAL DETENT
35559APIN (FOR MANUAL DETENT SPRING)
35906WIRE SUB-ASSY, INDICATOR LAMP
35971AHOUSING, POSITION INDICATOR, UPPER
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9015940257
main90159-40257
9016850066
main90168-50066
9025602005
main90256-02005
9163160828
main91631-60828
30 parts on this diagram · 2 diagrams in section
SHIFT LEVER & RETAINER for Toyota WINDOM
This section contains 43 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota WINDOM. Key components include: STARTER, BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, PLATE SUB-ASSY, SHIFT LEVER, LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT), SCREW (FOR SHIFT LEVER KNOB SETTING).
