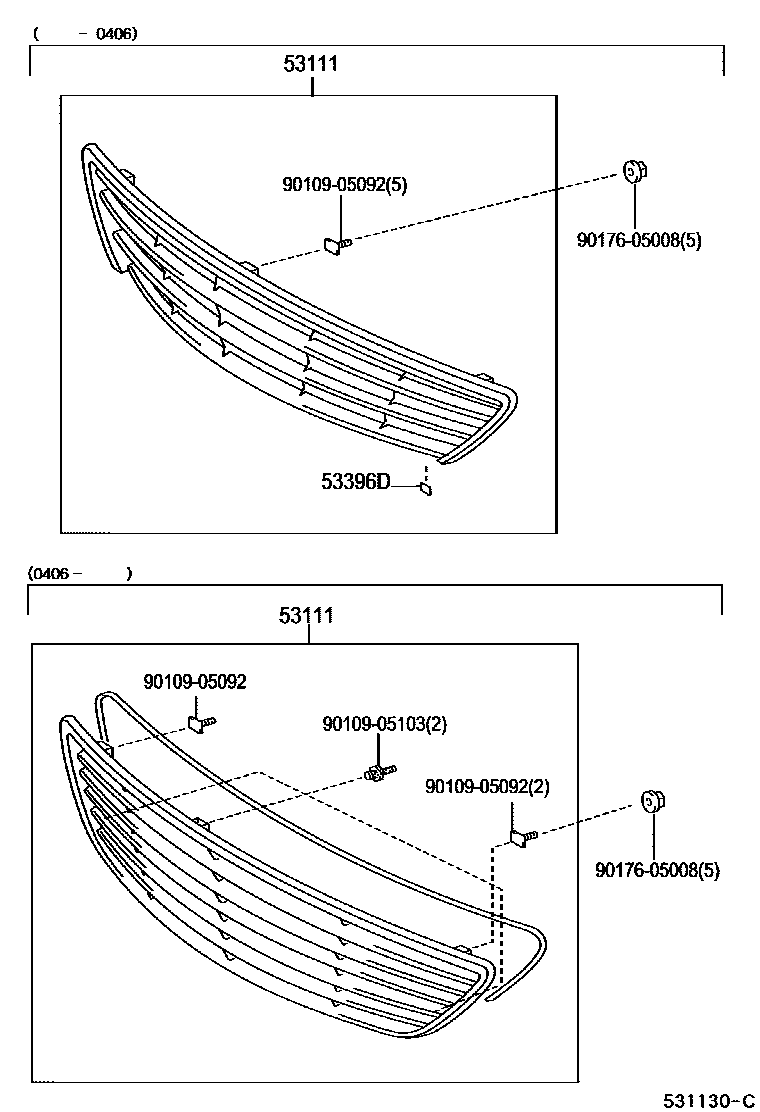

Toyota WINDOM — RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-33120-A0i200107-200406

WHITE PEARL CS.,062

main53101-33120-B0i200107-200406

SILVER ME.,1C0

main53101-33120-C0i200107-200406

BLACK,202

main53101-33120-D0i200107-200406

DK.RED MC.,3Q2

main53101-33120-H0i200107-200406

LT. AQUA M.M.,772

main53101-33120-J0i200107-200406

DARK BLUE MC.,8P8

main53101-33140i200406

53396DSEAL, RADIATOR GRILLE

main53396-30050×2i200107-200401

main53396-33010×2i200401-200406

9010905092

main90109-05092

9010905103

main90109-05103

9017605008

main90176-05008

5 parts on this diagram · 1 diagram in section

RADIATOR GRILLE for Toyota WINDOM

This section contains 5 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota WINDOM. Key components include: GRILLE, RADIATOR, SEAL, RADIATOR GRILLE.
