Toyota WINDOM — MIRROR

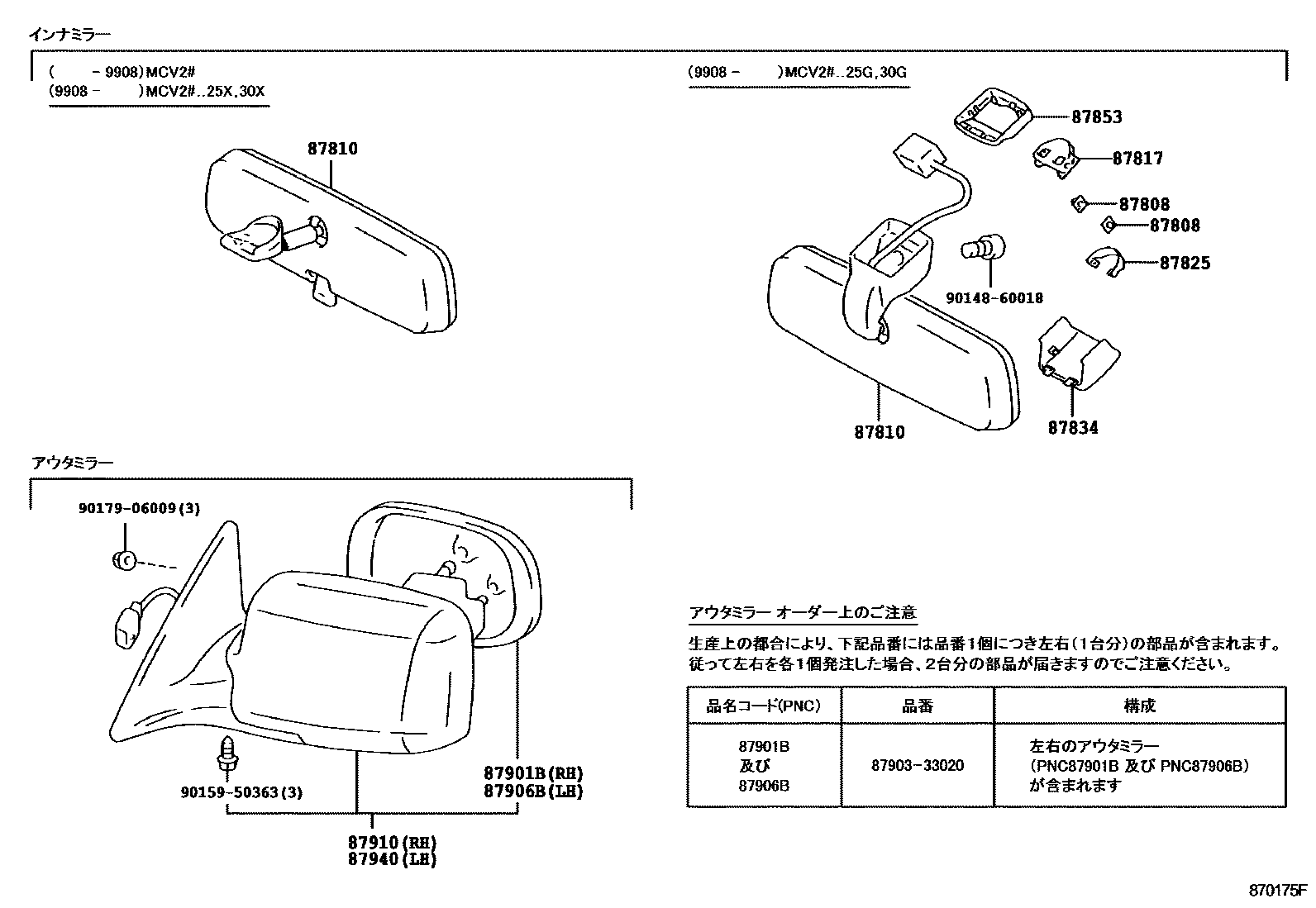

Parts diagram

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2i199908

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030i199608-199908

main87810-33020-A0i199908

IVORY,TRIM0#

main87810-33020-B0i199908

BLUE GRAY,TRIM2#

main87810-33020-G0i199908

SAGE,TRIM6#

87817SPACER, INNER REAR VIEW MIRROR

main87817-30030i199908

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-48010i199908

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-33010-A0i199908

IVORY,TRIM0#

main87834-33010-B0i199908

BLUE GRAY,TRIM2#

main87834-33010-G0i199908

SAGE,TRIM6#

87853BASE, INNER REAR VIEW MIRROR

main87853-24020-A0i199908-200107

IVORY,TRIM0#

main87853-24020-B0i199908-200107

BLUE GRAY,TRIM2#

main87853-24020-G1i199908-200107

SAGE,TRIM6#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-33200i199608-199908

main87931-33230i199608-199908

main87931-33460i199908

main87931-33470i199908

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-33200i199608-199908

main87961-33420i199908

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-33200-A0i199608-199908

main87910-33200-A1i199902-199904

main87910-33200-B0i199608-199908

main87910-33200-C0i199608-199908

main87910-33200-E0i199608-199908

main87910-33200-E1i199902-199904

main87910-33200-G0i199608-199808

main87910-33200-G1i199808-199908

main87910-33200-J0i199608-199908

main87910-33230-A0i199608-199908

main87910-33230-A1i199902-199904

main87910-33230-B0i199608-199908

main87910-33230-C0i199608-199908

main87910-33230-E0i199608-199908

main87910-33230-E1i199902-199904

main87910-33230-G0i199608-199808

main87910-33230-G1i199808-199908

main87910-33230-J0i199608-199908

main87910-33460-A0i199908

main87910-33460-A1i200001-200004

main87910-33460-B0i200001-200004

main87910-33460-B1i199908

main87910-33460-C0i200001-200004

main87910-33460-E0i200001-200004

main87910-33460-G0i199908

main87910-33460-G1i199908

main87910-33470-A0i199908

SU.WHITE PM,051

main87910-33470-B0i199908

SILVER ME,1C0

main87910-33470-B1i199908

DK.GRAY M.M,1C6

main87910-33470-C0i199908

BLACK,202

main87910-33470-G0i199908

DK.GREEN MC.P.I.O,6N9

main87910-33470-G1i199908

GRAYISH GREEN M.M.OP,6R6

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-33200-A0i199608-199908

SU.WHITE PM,051

main87940-33200-A1i199902-199904

main87940-33200-B0i199608-199908

SILVER ME,199

main87940-33200-C0i199608-199908

BLACK,202

main87940-33200-E0i199608-199908

FLAXEN MM,4M7

main87940-33200-E1i199902-199904

main87940-33200-G0i199608-199808

DK.GREEN M.M.,6P2

main87940-33200-G1i199808-199908

DK.GREEN MC.P.I.O.,6N9

main87940-33200-J0i199608-199908

DK.BLUE M.M.,8L3

main87940-33420-A0i199908

SU.WHITE PM,051

main87940-33420-A1i200101-200105

main87940-33420-B0i199908

SILVER ME,1C0

main87940-33420-B1i199908

DK.GRAY M.M,1C6

main87940-33420-C0i200101-200105

main87940-33420-E0i200101-200105

main87940-33420-G0i199908

DK.GREEN MC.P.I.O,6N9

main87940-33420-G1i199908

GRAYISH GREEN M.M.OP,6R6

9014860018

main90148-60018

9015950363

main90159-50363

9017906009

main90179-06009

13 parts on this diagram · 1 diagram in section

MIRROR for Toyota WINDOM

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota WINDOM. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
