Toyota WINDOM — MIRROR

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2iVCV1#199110-199408

main87808-33010×2iVCV1#199408-199608

87810MIRROR ASSY, INNER REAR VIEW

main87810-30240-C1iVCV1#199408-199608

BLACK,TRIM2#

main87810-30240-E2iVCV10199408-199608

OAK,TRIM4#

main87810-30240-K1iVCV1#199408-199608

TAUPE,TRIM9#

main87810-33010-01iVCV1#199110-199408

BLACK,TRIM2#

main87810-33010-02iVCV1#199110-199408

TAUPE,TRIM9#

main87810-33010-05iVCV10199110-199308

GRIGE,TRIM0#

main87810-33010-E0iVCV1#199308-199408

OAK,TRIM4#

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010iVCV1#199110-199608

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010iVCV1#199110-199408

main87825-33010iVCV1#199408-199608

87833CAP, INNER MIRROR SERVICE HOLE

main87833-33010-01iVCV1#199110-199408

BLACK,TRIM2#

main87833-33010-02iVCV1#199110-199408

TAUPE,TRIM9#

main87833-33010-05iVCV10199110-199308

GRIGE,TRIM0#

main87833-33010-E0iVCV1#199308-199408

OAK,TRIM4#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-30110iVCV1#199408-199608

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-32510iVCV1#199408-199608

main87931-32520iVCV10199110-199408

87904SPRING SUB-ASSY, OUTER MIRROR, RH

main87904-33020iVCV1#199110-199408

87905BSPRING SUB-ASSY, OUTER MIRROR, LH

main87905-33020iVCV1#199110-199408

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-32540iVCV11199308-199408

main87961-32550iVCV10199110-199408

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-32450-A0iVCV1#199408-199608

SUPER WHITE PEARL MC,051

main87910-32450-B0iVCV11199508-199608

2.5 LEXTER,SUPER SILVER 3,176

main87910-32450-C0iVCV11199308-199408

BLACK TONING G,202

main87910-32450-D0iVCV1#199408-199608

LT GARYISH ROSE ME O,3K7

main87910-32450-E1iVCV11199308-199408

BEIGE ME TONINING,4M9

main87910-32450-G1iVCV11199308-199408

DK GREEN MICA,6M1

main87910-32450-G3iVCV11199508-199608

DK.GREEN M.M.,6P2

main87910-32450-J0iVCV1#199408-199608

DARK BLUE MM TONING,8K0

main87910-32460-A0iVCV10199301-199303

main87910-32460-C0iVCV10199110-199408

BLACK,202

main87910-32460-D0iVCV10199110-199308

DK.MAUVE MC.ME.,3K1

main87910-32460-D1iVCV10199110-199308

RED MC.,3K3

main87910-32460-D2iVCV10199110-199408

LT.GRAYISH ROSE ME.,3K7

main87910-32460-E0iVCV10199110-199308

BEIGE MC.ME.,4J1

main87910-32460-E2iVCV10199308-199408

BEIGE ME,4M9

main87910-32460-G0iVCV10199110-199408

DARK GREEN MC.,6M1

main87910-32460-J0iVCV10199308-199408

DARK BLUE MM,8K0

87910FMIRROR ASSY, FENDER, RH

main87910-33100iVCV1#199110-199408

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-33020iVCV1#199110-199408

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-32480-A0iVCV11199308-199408

SUPER WHITE PEARL MC,051

main87940-32480-B0iVCV11199504-199507

main87940-32480-C0iVCV1#199408-199608

BLACK,202

main87940-32480-D0iVCV11199308-199408

LIGHT GARYISH ROSE O,3K7

main87940-32480-E1iVCV11199308-199408

BEIGE ME,4M9

main87940-32480-G1iVCV1#199408-199508

DK GREEN MICA,6M1

main87940-32480-G3iVCV11199508-199608

DK.GREEN M.M.,6P2

main87940-32480-J0iVCV1#199408-199608

DARK BLUE MM,8K0

main87940-32490-A0iVCV10199305-199306

main87940-32490-C0iVCV10199110-199408

BLACK,202

main87940-32490-D0iVCV10199110-199308

DK.MAUVE MC.ME,3K1

main87940-32490-D1iVCV10199110-199308

RED MC.,3K3

main87940-32490-D2iVCV10199110-199408

LT.GRAYISH ROSE ME.,3K7

main87940-32490-E0iVCV10199110-199308

BEIGE MC.ME.,4J1

main87940-32490-E2iVCV10199308-199408

BEIGE ME,4M9

main87940-32490-G0iVCV10199110-199408

DARK GREEN MC.,6M1

main87940-32490-J0iVCV10199308-199408

DARK BLUE MM,8K0

87940FMIRROR ASSY, FENDER, LH

main87940-33100iVCV1#199110-199408

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-33020iVCV1#199110-199408

9015350011

main90153-50011

9015960057

main90159-60057

9017906097

main90179-06097

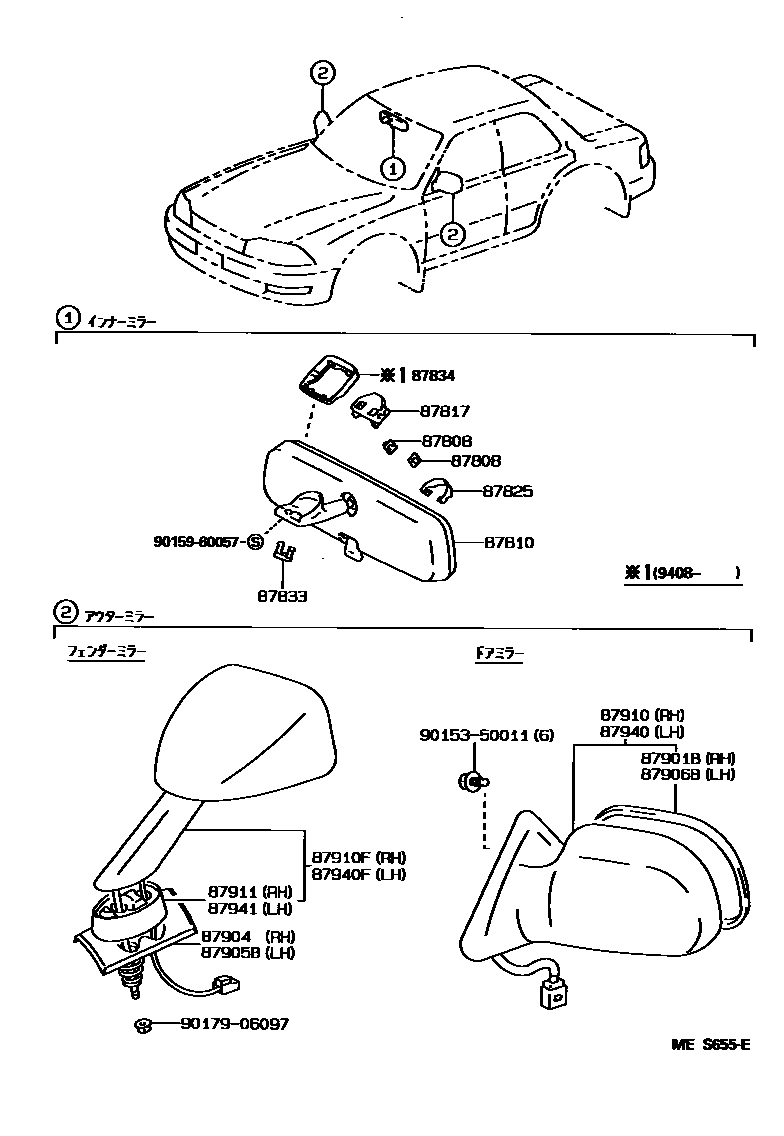

19 parts on this diagram · 1 diagram in section
