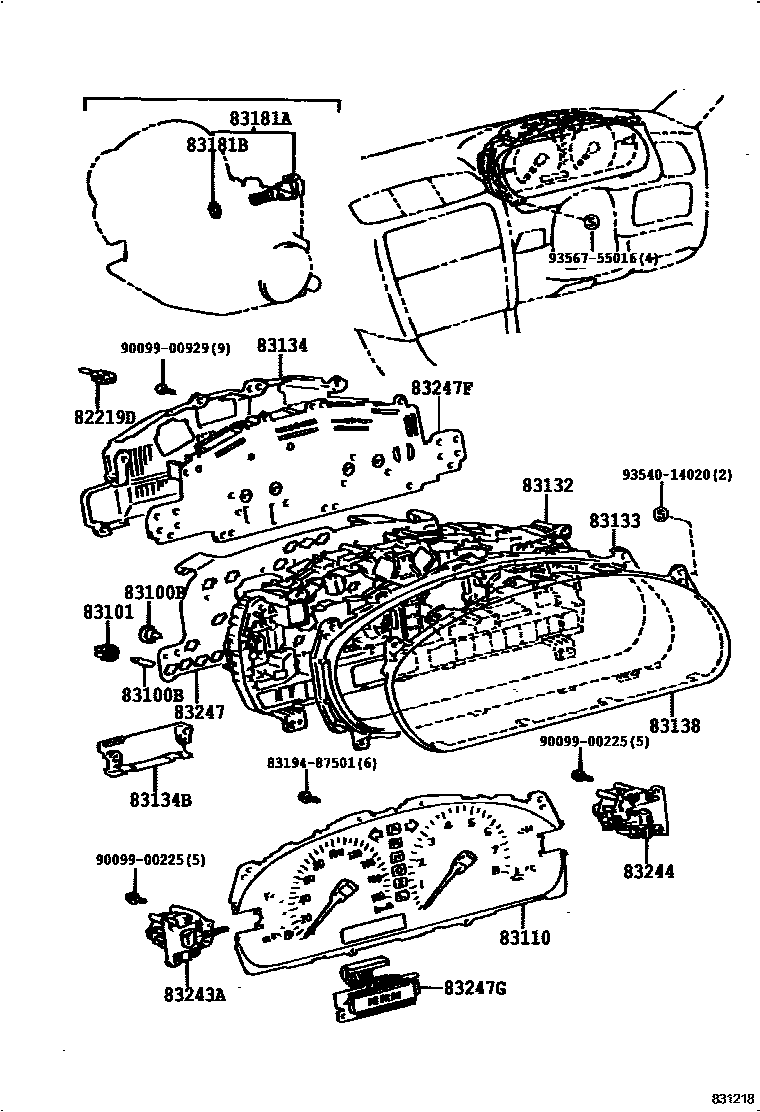

Toyota WINDOM — METER
82219DWIRE, SENSOR
83100BBULB, COMBINATION METER, NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
OD=12.5 GREEN
OD=11.3 BLUE
OD=12.2 BLUE
83110SPEEDOMETER ASSY
3.0G
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83138GLASS, SPEEDOMETER
83181ASENSOR, SPEEDOMETER
83181BRING, O (FOR SPEEDOMETER SENSOR)
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
3.0G
83247FPLATE, METER CIRCUIT, NO.1 (FOR COMPUTER)
83247GPLATE, METER CIRCUIT, NO.2 (FOR COMPUTER)
8319487501
main83194-87501
9009900225
main90099-00225
9009900929
main90099-00929
9354014020
main93540-14020
9356755016
main93567-55016
21 parts on this diagram · 2 diagrams in section
