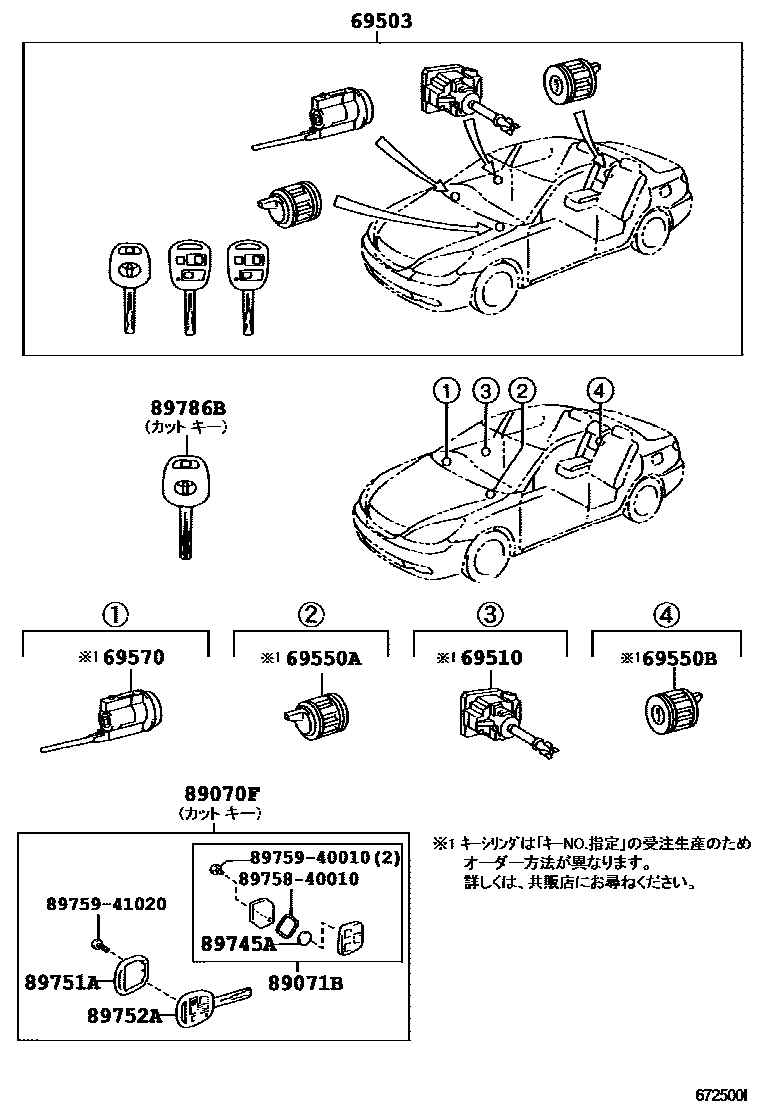

Toyota WINDOM — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-3T180i200107-200208

main69005-3T181i200208-200406

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-33150i200107-200208

main69510-33160i200208-200406

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-33090i200107-200406

69550BCYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK

main69550-33090i200107-200406

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-33130i200107-200406

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-33610i200107-200406

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50081i200107-200406

89745ABATTERY, TRANSMITTER

main89745-40010i200107-200406

89751ACOVER, TRANSMITTER HOUSING

main89751-50010i200107-200406

main89751-50011i200511-200603

89752ACASE, TRANSMITTER HOUSING

main89752-33080i200107-200406

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-50070i200107-200406

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

14 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota WINDOM

This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota WINDOM. Key components include: CYLINDER SET, LOCK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK, CYLINDER ASSY, REAR SEAT CENTER ARMREST DOOR LOCK, CYLINDER ASSY, IGNITION SWITCH LOCK.
