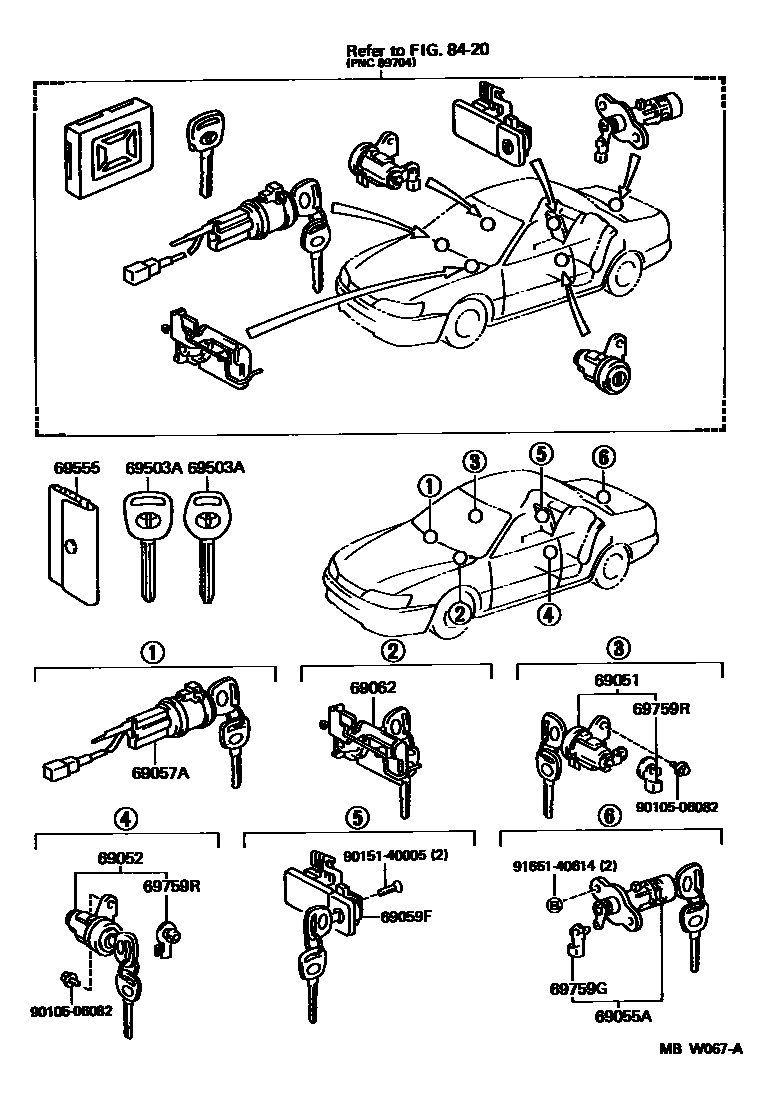

Toyota WINDOM — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33050i199110-199408

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33060i199110-199408

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33080i199110-199408

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33070i199110-199408

69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK

main69059-33020-A0i199110-199308

IVERY,TRIM0#

main69059-33020-C0i199110-199408

BLACK,TRIM2#

main69059-33020-E1i199308-199408

OAK,TRIM4#

main69059-33020-K1i199110-199408

TAUPE,TRIM9#

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33060i199110-199308

69503CYLINDER SET, LOCK

main69005-33360-C0i199308-199408

BLACK,TRIM2#

main69005-33360-K0i199308-199408

TOAP,TRIM9#

main69005-33420-C0i199408-199608

BLACK,TRIM2#

main69005-33420-K0i199408-199608

MD.TAUPE,TRIM9#

69503AKEY, BLANK

main90999-00194i199110-199608

main90999-00195i199110-199608

69555COVER, KEY

main69555-17020i199308-199608

main69555-33010i199110-199308

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080i199110-199608

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080i199408-199608

main69759-32110i199408-199608

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

9010506082

main90105-06082

9015140005

main90151-40005

9165140614

main91651-40614

15 parts on this diagram · 4 diagrams in section

LOCK CYLINDER SET for Toyota WINDOM

This section contains 23 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota WINDOM. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, REAR SEAT ARMREST LOCK.
