Toyota WINDOM — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01127×6i199110-199608

main90919-01128×6i199110-199608

19500COIL ASSY, IGNITION

main90919-02197i199308-199608

main90919-02207i199110-199608

19531HOLDER, RESISTIVE CORD, NO.1

main19531-46010i199110-199608

19531AHOLDER, RESISTIVE CODE, NO.3

main19531-74010i199110-199608

19539HOLDER, RESISTIVE CODE, NO.4

main19539-50010i199110-199608

main19539-62010×2i199110-199608

NO.3,NO.4

main19539-62020i199110-199608

main19539-70010i199110-199608

19539AHOLDER, RESISTIVE CODE, NO.5

main19539-11010i199110-199608

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21519i199110-199608

19901ACORD, COIL RESISTIVE

main19590-62030i199110-199608

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15173i199110-199608

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15176i199110-199608

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15174i199110-199608

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15177i199110-199608

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-15175i199110-199608

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15178i199110-199608

9046400556

main90464-00556

9046400561

main90464-00561

9090464001

main90904-64001

9092901303

main90929-01303

9092901304

main90929-01304

9092901306

main90929-01306

9092901307

main90929-01307

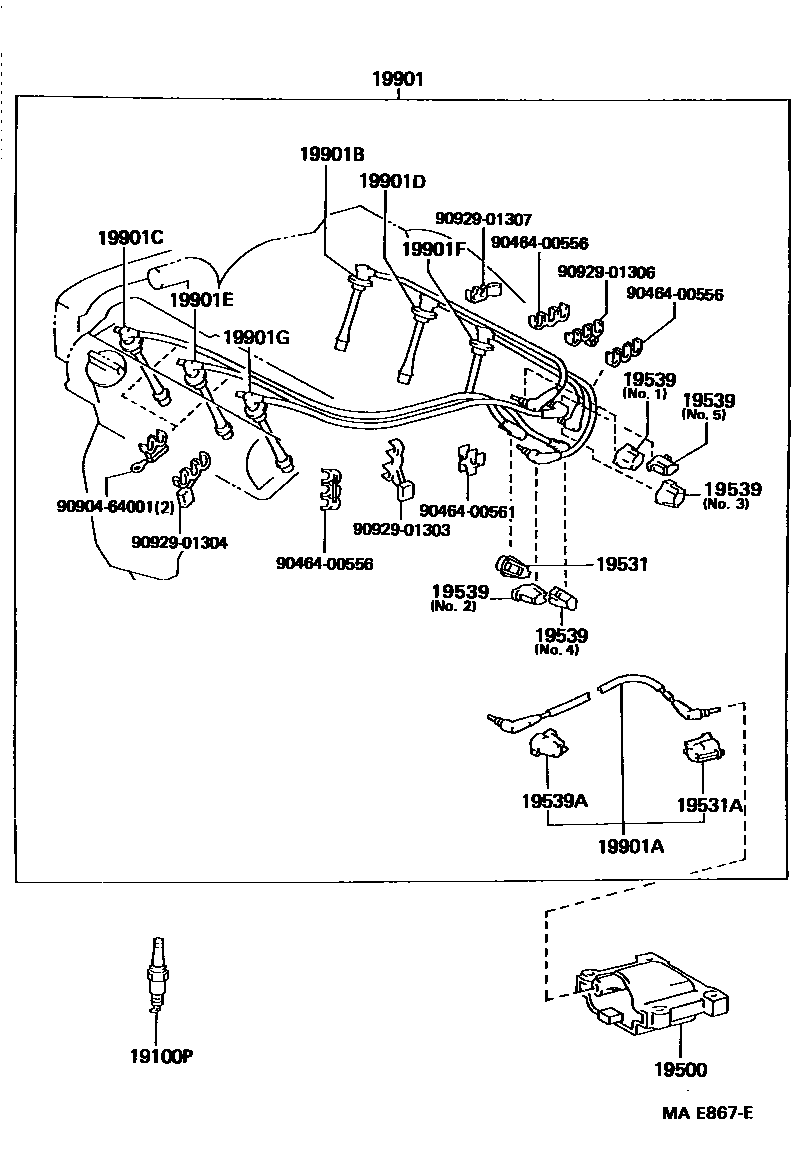

21 parts on this diagram · 1 diagram in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota WINDOM

This section contains 21 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota WINDOM. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, HOLDER, RESISTIVE CORD, NO.1, HOLDER, RESISTIVE CODE, NO.3, HOLDER, RESISTIVE CODE, NO.4.
