Toyota WINDOM — HOOD LOCK & HINGE

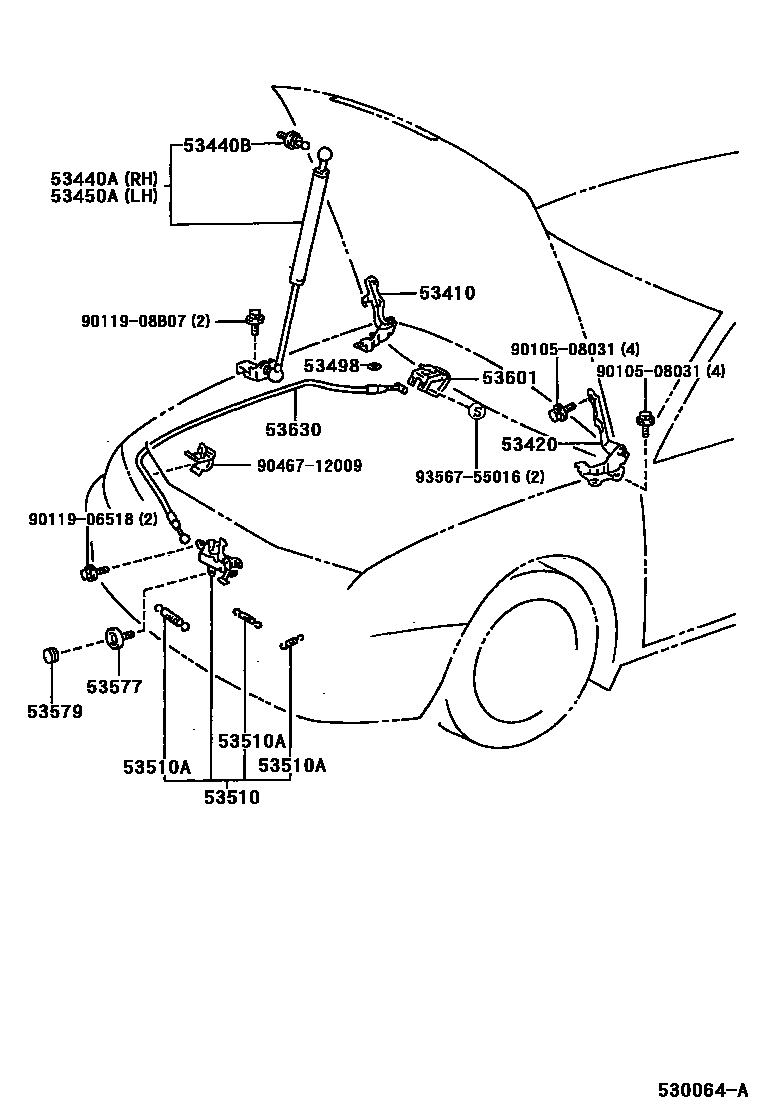

Parts diagram

53410HINGE ASSY, HOOD, RH

main53410-33040i199608

53420HINGE ASSY, HOOD, LH

main53420-33040i199608

53440ASUPPORT ASSY, HOOD, RH

main53440-39155i199608

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2i199608

53450ASUPPORT ASSY, HOOD, LH

main53440-39155i199608

53498PAD, HOOD HINGE, NO.2

main53497-12050×4i200001

main53497-20070×4i200001

53510LOCK ASSY, HOOD

main53510-33100i199608

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09057i199608

main90506-12067i199608

main90506-20065i199608

53577BOLT, HOOD LOCK

main53577-33010i199608

53579CAP, HOOD LOCK NUT

main53579-50010i199608

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-33020-A0i199808

IVORY,TRIM0#

main53601-33020-C0i199608-199908

BLACK,TRIM2#

main53601-33020-G0i199608

SAGE,TRIM6#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33100i199608

9010508031

main90105-08031

9011906518

main90119-06518

9011908B07

main90119-08B07

9046712009

main90467-12009

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section

HOOD LOCK & HINGE for Toyota WINDOM

This section contains 17 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota WINDOM. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, SUPPORT ASSY, HOOD, RH, BOLT, HOOD SUPPORT, NO.1, SUPPORT ASSY, HOOD, LH.
