Toyota WINDOM — HEATING & AIR CONDITIONING - COMPRESSOR

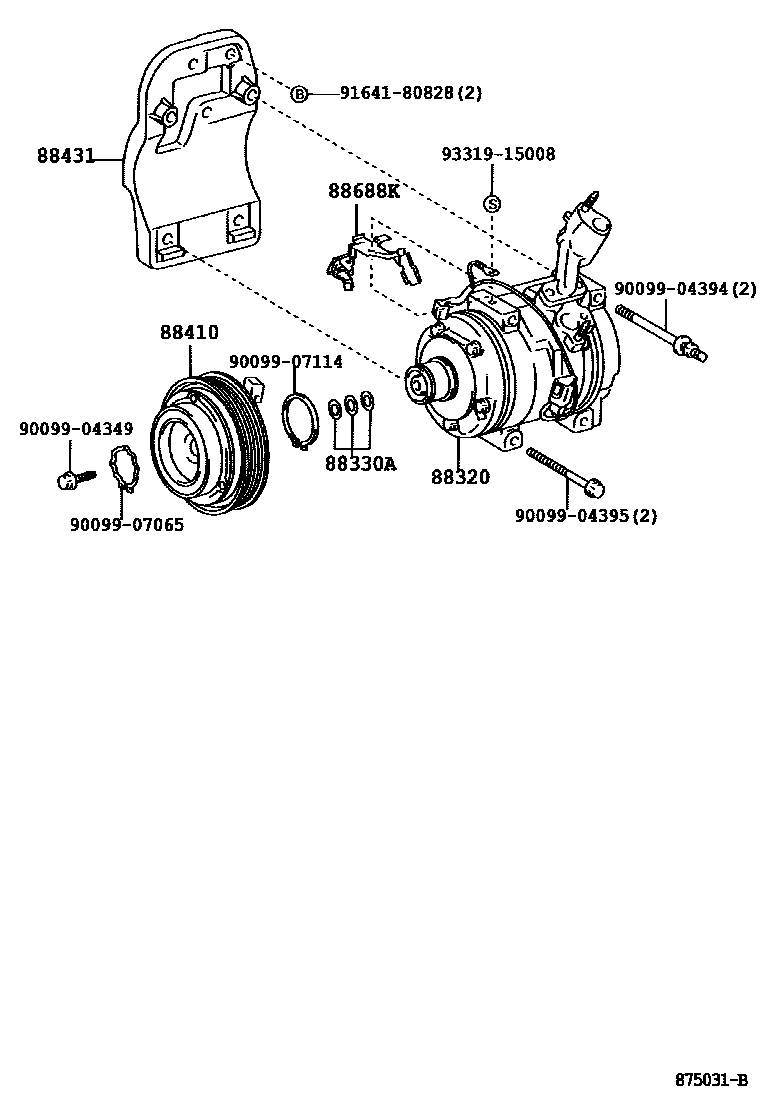

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-33160i200107-200406

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200107-200406

88410CLUTCH ASSY, MAGNET

main88410-33120i200107-200406

main88410-33140i200406-200508

main88410-33160i200509

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33041i200107-200406

88688KBRACKET, COOLER COMPRESSOR

main88688-03030i200107-200406

main88688-48110i200406

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota WINDOM

This section contains 12 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota WINDOM. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1, BRACKET, COOLER COMPRESSOR.
