Toyota WINDOM — HEATING & AIR CONDITIONING - COMPRESSOR

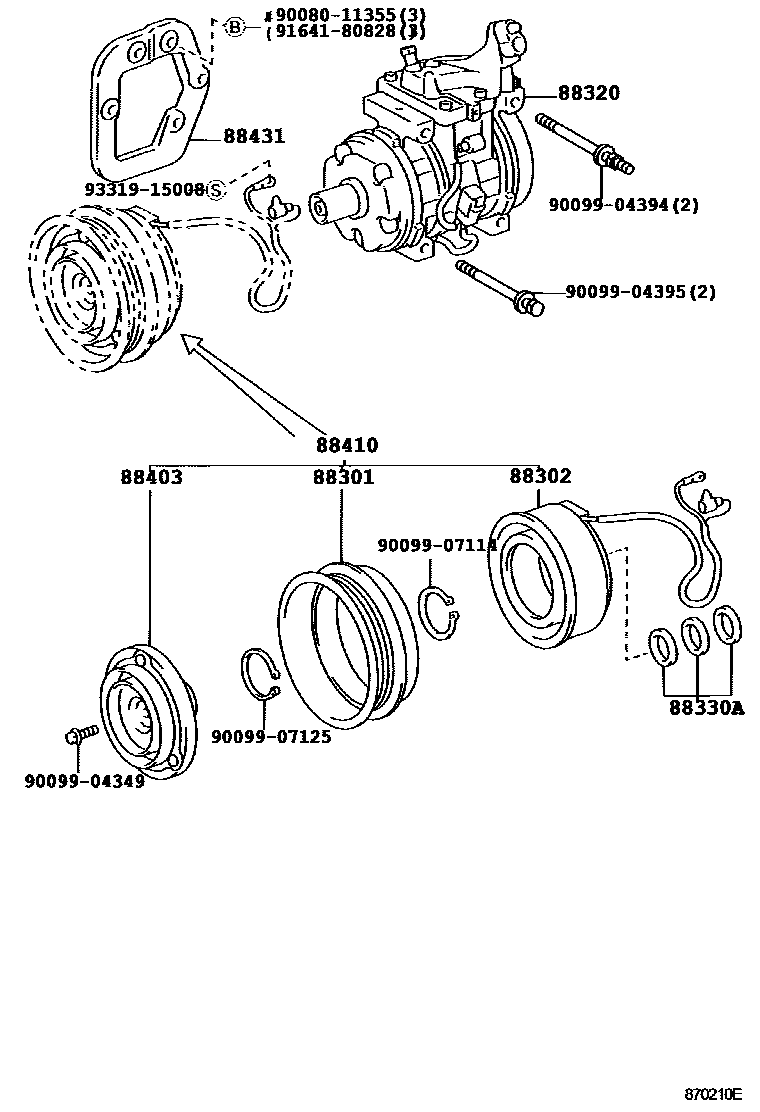

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-33010i199908

main88412-48020i199908

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-33050i199608-199808

main88411-44010i199808-199908

88320COMPRESSOR ASSY, COOLER

main88320-33120i199608-199808

main88320-33140i199808-200107

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199608-199908

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290i199808-199908

main88403-32010i199808-199908

88410CLUTCH ASSY, MAGNET

main88410-33110i199608-199808

main88410-33120i199808-200107

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07010i200008

main88431-33020i199808-200008

main88431-33040i199808-199811

main88431-33041i199811

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009907114

main90099-07114

9009907125

main90099-07125

9164180828

main91641-80828

9331915008

main93319-15008

15 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota WINDOM

This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota WINDOM. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
