Toyota WINDOM — HEATING & AIR CONDITIONING - COMPRESSOR

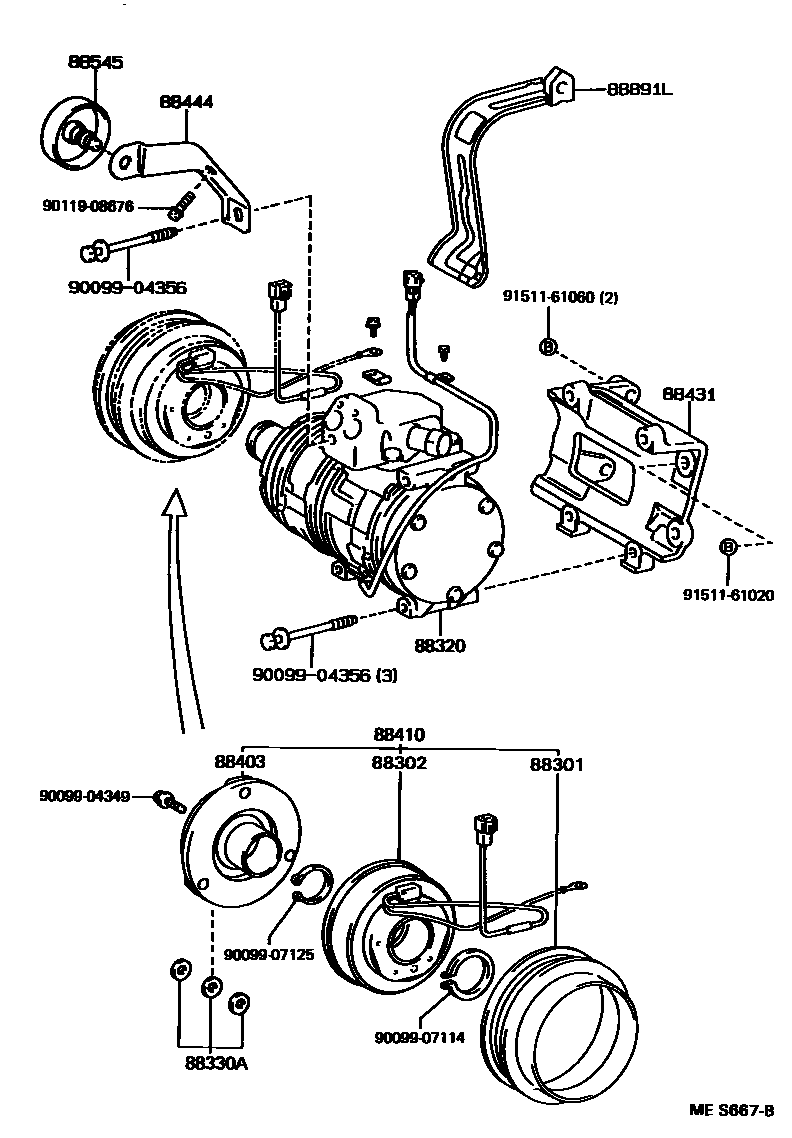

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32030i199110-199608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-33010i199110-199308

main88411-33040i199308-199608

88320COMPRESSOR ASSY, COOLER

main88320-33020i199110-199308

main88320-33070i199308-199608

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i199110-199608

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011i199110-199308

main88403-30290i199308-199608

88410CLUTCH ASSY, MAGNET

main88410-33010i199110-199308

main88410-33050i199308-199608

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33010i199110-199608

88444BRACKET, IDLE PULLEY

main88444-33011i199110-199208

main88444-33012i199208-199308

88545PULLEY ASSY, IDLE

main88440-33010i199110-199308

88891LCOVER, COOLER, NO.1

main88891-33040i199110-199208

main88891-33041i199208-199211

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9011908676

main90119-08676

9151161020

main91511-61020

9151161060

main91511-61060

17 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota WINDOM

This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota WINDOM. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
