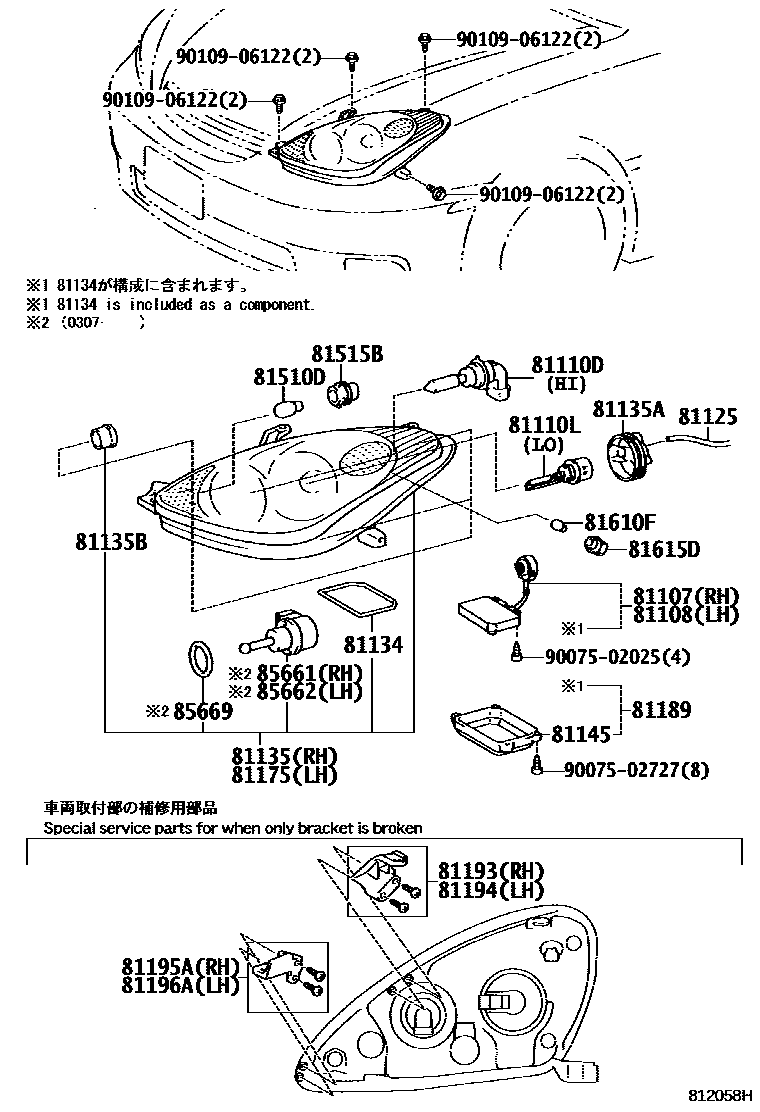

Toyota WINDOM — HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-33460i200107-200406

main81107-33570×2i200406

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-33460i200107-200406

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i200107-200406

81110LBULB, DISCHARGE HEADLAMP

main90981-20001×2i200107-200406

main90981-20005×2i200406-200408

81125CORD, HEADLAMP

main81125-33460×2i200107-200406

main81125-33570×2i200406

81134GASKET, HEADLAMP

main90075-68001i200406-200603

main90075-99137i200107-200406

81135UNIT ASSY, HEADLAMP, RH

main81140-33470i200107-200406

main81145-33580i200406-200409

main81145-33581i200409

81135ACAP, LOCKING

main81135-3A150×2i200406

main90075-66007×2i200107-200406

81135BCAP, LOCKING

main90075-66013×6i200107-200406

81145COVER, HEADLAMP, NO.2

main90075-99136×2i200107-200406

81175UNIT ASSY, HEADLAMP, LH

main81070-33470i200107-200406

main81185-33580i200406-200409

main81185-33581i200409

81189COVER, HEADLAMP

main90075-67002×2i200107-200406

main90075-67005×2i200406

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-33030i200107-200406

main81193-33040i200406

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-33030i200107-200406

main81194-33040i200406

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-33010i200107-200406

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-33010i200107-200406

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200107-200406

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200107-200406

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200107-200406

81615DSOCKET, CLEARANCE LAMP

main90075-60016×2i200107-200406

main90075-60046×2i200406-200409

main90075-60077×2i200507

85661MOTOR, HEADLAMP LEVELING, RH

main85661-50040i200307-200406

85662MOTOR, HEADLAMP LEVELING, LH

main85661-50040i200307-200406

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2i200307-200406

9007502025

main90075-02025

9007502727

main90075-02727

9010906122

main90109-06122

26 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota WINDOM

This section contains 29 genuine Toyota parts for the HEADLAMP system of the Toyota WINDOM. Key components include: CAUTION PLATE (EXTERIOR & INTERIOR), COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.2), BULB, DISCHARGE HEADLAMP.
