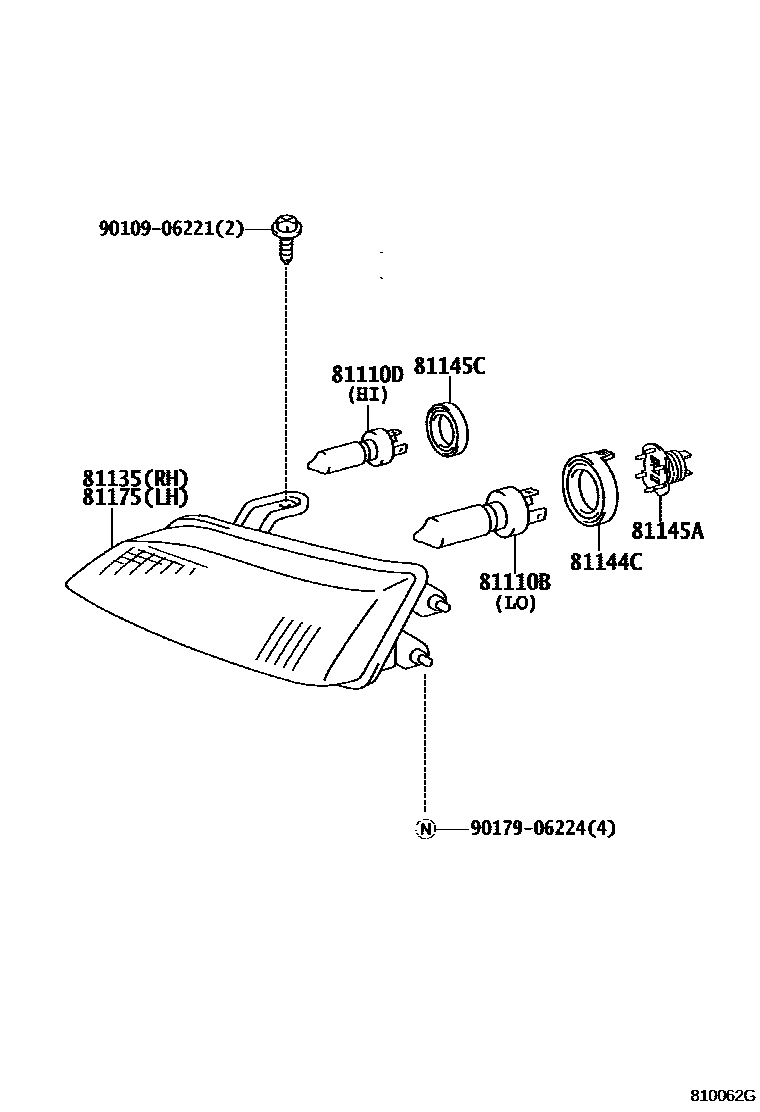

Toyota WINDOM — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13059×2i199608-199908

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i199608

81135UNIT ASSY, HEADLAMP, RH

main81130-33230i199608-199908

main81130-33350i199908-199910

main81140-33350i199910

main81140-33400i200001-200004

81144COVER, HEADLAMP, NO.1

main90075-99136×2i199908

81144CCOVER, HEADLAMP SOCKET

main90075-65002×2i199608-199908

81145AADAPTER ASSY

main90075-99117×2i199608-199908

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006×2i199608-199908

81175UNIT ASSY, HEADLAMP, LH

main81070-33340i199910

main81070-33390i200001-200004

main81170-33230i199608-199908

main81170-33340i199908-199910

9010906221

main90109-06221

9017906224

main90179-06224

10 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota WINDOM

This section contains 23 genuine Toyota parts for the HEADLAMP system of the Toyota WINDOM. Key components include: LABEL, HEADLAMP VOLTAGE CAUTION, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
