Toyota WINDOM — HEADLAMP

53183HSEAL, HEADLAMP COVER, RH

main53183-33020i199110-199408

main53183-33030i199408-199608

53184FSEAL, HEADLAMP COVER, LH

main53184-33020i199110-199408

main53184-33030i199408-199608

81110HEADLAMP ASSY, RH

main81110-33060i199110-199408

main81110-33140i199408-199608

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i199110-199608

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13054×2i199110-199608

81135UNIT ASSY, HEADLAMP, RH

main81130-33060i199110-199408

main81130-33140i199408-199608

81150HEADLAMP ASSY, LH

main81150-33060i199110-199408

main81150-33140i199408-199608

81175UNIT ASSY, HEADLAMP, LH

main81170-33060i199110-199408

main81170-33140i199408-199608

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i199110-199608

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99071×2i199110-199608

81610FBULB(FOR CLEARANCE LAMP)

main90981-12010×2i199110-199608

81615CSOCKET & WIRE, CLEARANCE LAMP

main90075-99007×2i199110-199608

9007599082

main90075-99082

9011906587

main90119-06587

9018906162

main90189-06162

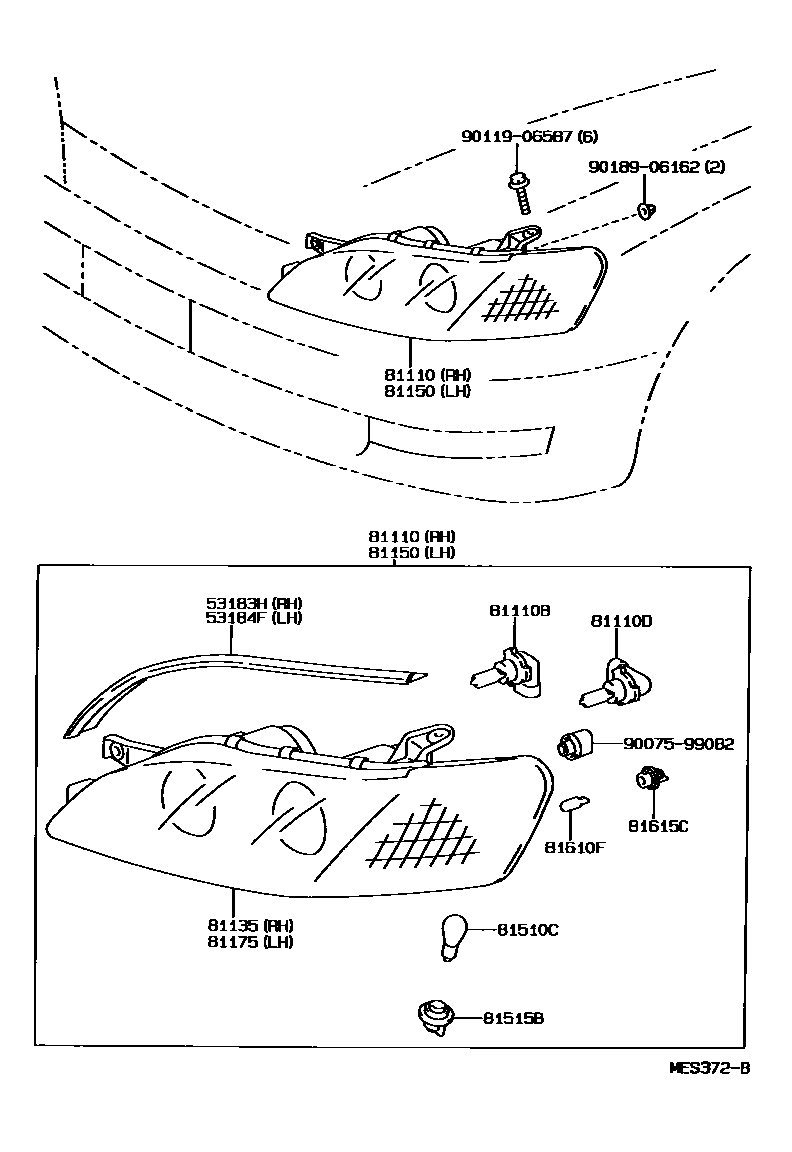

15 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota WINDOM

This section contains 15 genuine Toyota parts for the HEADLAMP system of the Toyota WINDOM. Key components include: SEAL, HEADLAMP COVER, RH, SEAL, HEADLAMP COVER, LH, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2).
