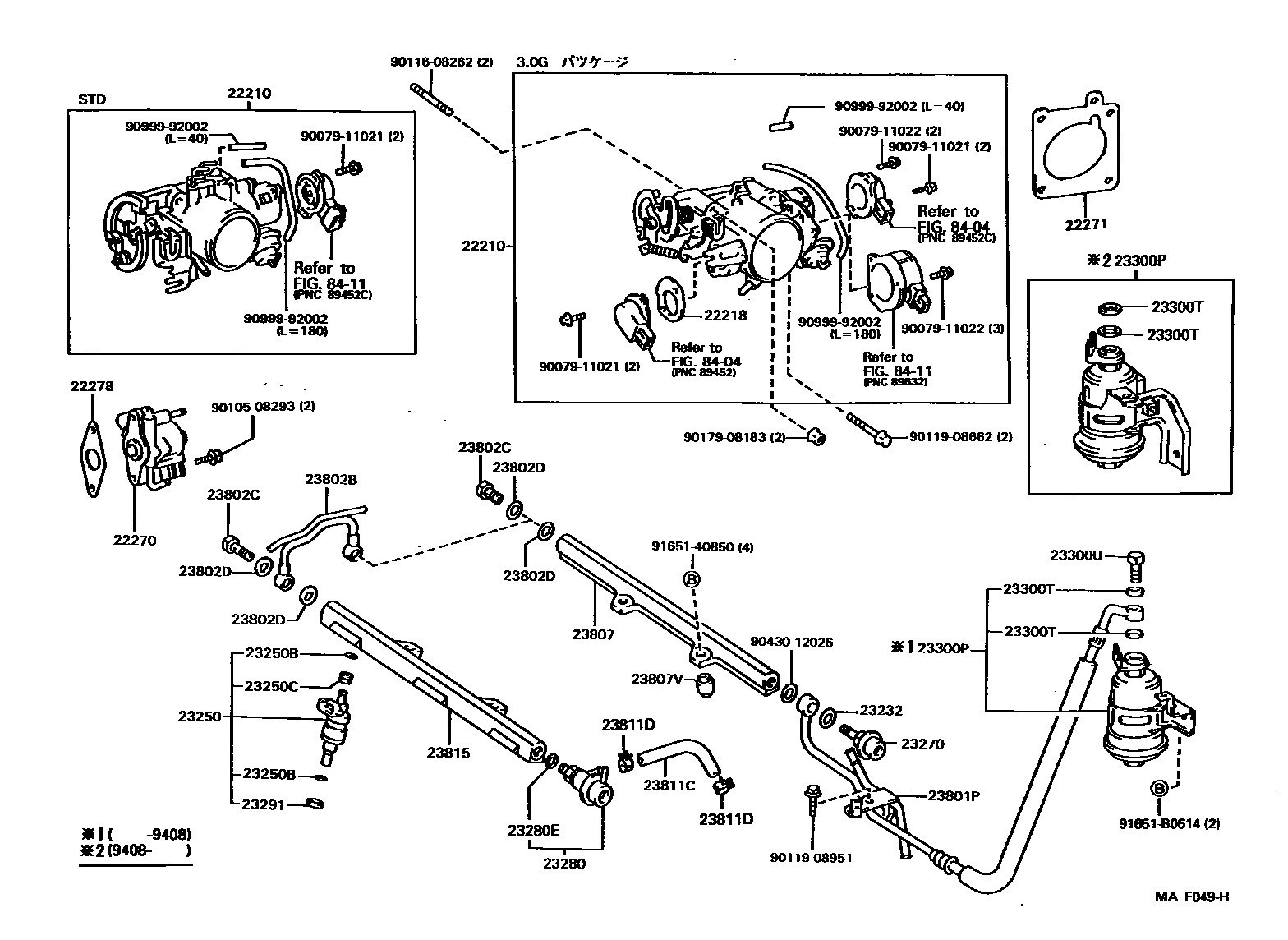

Toyota WINDOM — FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
22218COVER(FOR THROTTLE BODY)
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
22278GASKET, IDLE SPEED CONTROL VALVE
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23811CHOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR)
23811DCLIP, HOSE(FOR FUEL HOSE)
23815PIPE, FUEL DELIVERY, NO.2
8404ELECTRONIC FUEL INJECTION SYSTEM
8411TRACTION CONTROL
9007911021
main90079-11021
9007911022
main90079-11022
9010508293
main90105-08293
9011608262
main90116-08262
9011908662
main90119-08662
9011908951
main90119-08951
9017908183
main90179-08183
9043012026
main90430-12026
9099992002
main90999-92002
9165140850
main91651-40850
91651B0614
main91651-B0614
38 parts on this diagram · 3 diagrams in section
FUEL INJECTION SYSTEM for Toyota WINDOM
This section contains 56 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota WINDOM. Key components include: AIR CLEANER, BODY ASSY, THROTTLE, COVER(FOR THROTTLE BODY), VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
