Toyota WINDOM — FRONT SPRING & SHOCK ABSORBER

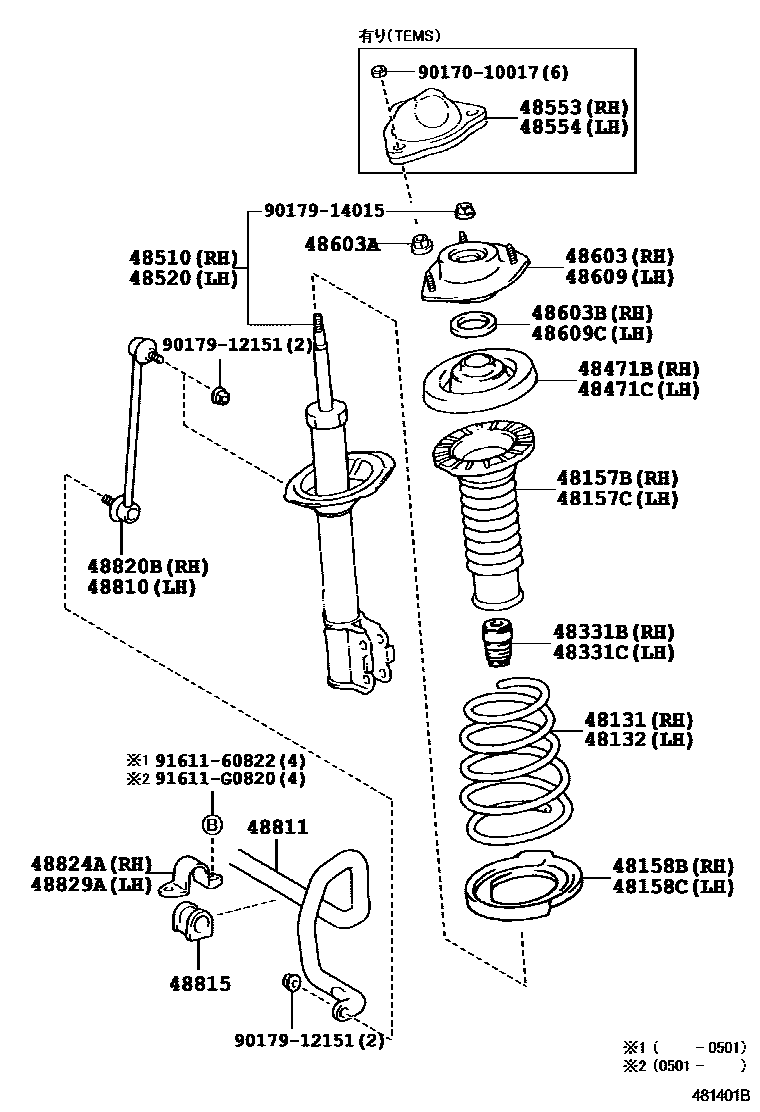

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-3T350i200107-200307
main48131-3T351i200307-200403
main48131-3T352i200403-200406
48132SPRING, FRONT COIL, LH
main48131-3T350i200107-200307
main48131-3T351i200406
main48131-3T352i200403-200406
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-33060i200107-200307
main48157-33061i200307-200310
main48157-33062i200310-200406
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-33060i200107-200307
main48157-33061i200307-200310
main48157-33062i200406
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-33030i200107-200307
main48158-33031i200307-200406
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-33030i200107-200307
main48158-33031i200307-200406
48331BBUMPER, FRONT SPRING, RH
main48331-33030i200107-200403
main48331-33031i200403-200406
main48331-33032i200501
48331CBUMPER, FRONT SPRING, LH
main48331-33030i200107-200403
main48331-33031i200403-200406
main48331-33032i200501
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-41010i200107-200406
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-41010i200406
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80035i200107-200307
main48510-80037i200107-200307
sub48510-80147
main48510-80108i200307-200406
main48510-80115i200307-200406
main48510-80163i200406
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-39415i200107-200307
main48520-39435i200107-200307
sub48520-39695
main48520-39545i200307-200406
main48520-39555i200307-200406
main48520-80013i200406
48553CAP, SHOCK ABSORBER, UPPER
main48553-33040i200107-200406
48554CAP, FRONT SHOCK ABSORBER, LH
main48554-33040i200107-200406
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-33150i200107-200406
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90178-10017×6i200107-200406
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
main90903-63014i200107-200406
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-33150i200107-200406
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
main90903-63014i200107-200406
48810LINK ASSY, FRONT STABILIZER, LH
main48820-28050i200107-200406
48811BAR, STABILIZER, FRONT
main48811-33140i200107-200406
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-33100×2i200107-200406
sub48815-33101
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-28050i200107-200406
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-26210i200107-200406
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-26210i200107-200406
9017010017
main90170-10017
9017912151
main90179-12151
9017914015
main90179-14015
9161160822
main91611-60822
91611G0820
main91611-G0820

30 parts on this diagram · 1 diagram in section
