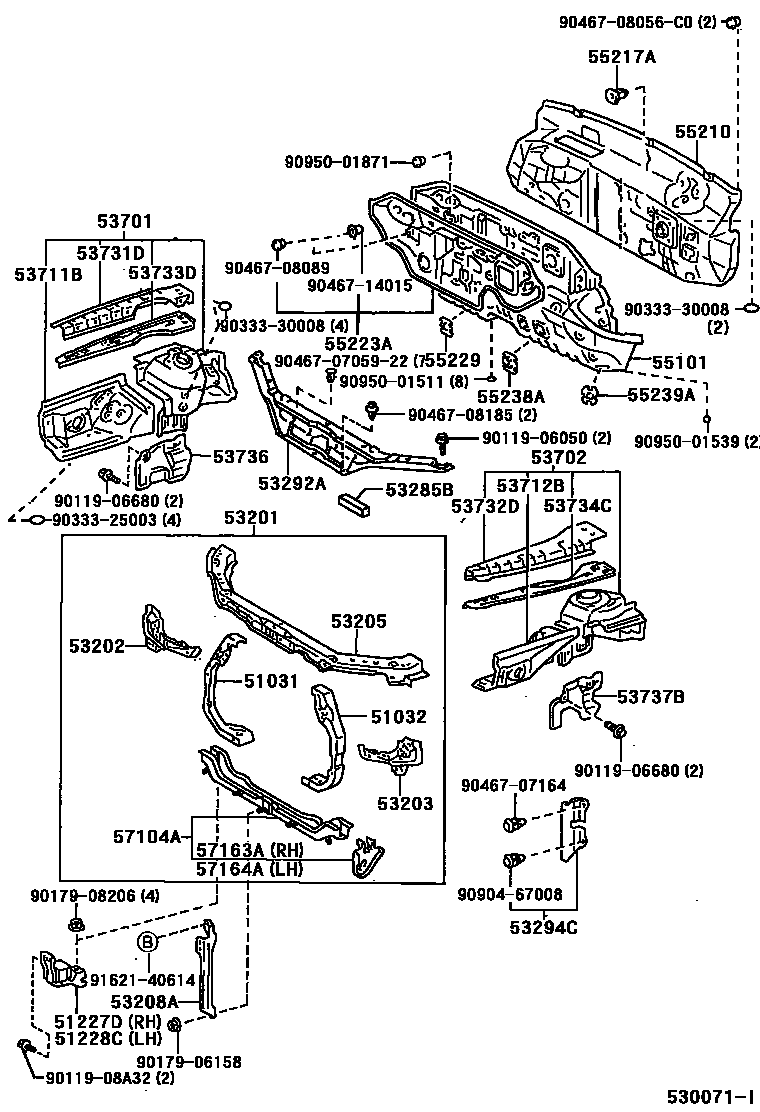

Toyota WINDOM — FRONT FENDER APRON & DASH PANEL

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-33030iMCV2#199608

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-33030iMCV2#199608

51227DWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH

main51227-33020iMCV2#199608-199910

51228CPLATE, FRONT SUSPENSION MEMBER

main51228-33010iMCV2#199608-199910

53201SUPPORT SUB-ASSY, RADIATOR

main53201-33070iMCV2#199608-199808

main53201-33071iMCV2#199808-199908

main53201-33120iMCV2#199908

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53211-33040iMCV2#199608-199908

main53211-33060iMCV2#199908

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-33060iMCV2#199608-199808

main53203-33061iMCV2#199808-199908

main53203-33080iMCV2#199908

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33050iMCV2#199608-199811

main53205-33051iMCV2#199811

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-33030iMCV2#199608-199809

main53215-33031iMCV2#199809

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-33030iMCV2#199608-199808

main53285-33040iMCV2#199808

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-33060iMCV2#199608-199908

sub53292-33050

main53292-33100iMCV2#199908

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-33020iMCV2#199608-199704

main53294-33021iMCV2#199704

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-33070iMCV2#199608-199809

main53701-33071iMCV2#199809-199901

main53701-33072iMCV2#199901-199903

main53701-33073iMCV2#199903-200004

main53701-33074iMCV2#200004

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-33050iMCV2#199608-199809

main53702-33051iMCV2#199809-200004

main53702-33052iMCV2#200004

53711BAPRON, FRONT FENDER, FRONT RH

main53711-33040iMCV2#199608-199901

main53711-33041iMCV2#199901-199903

main53711-33042iMCV2#199903

53712BAPRON, FRONT FENDER, FRONT LH

main53712-33020iMCV2#199608

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-33011iMCV2#199608-200004

main53731-33040iMCV2#200004

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-33011iMCV2#199608-200004

main53732-33030iMCV2#200004

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-33900iMCV2#199608

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-33900iMCV2#199608

53736SEAL, FRONT FENDER APRON, RH

main53736-33020iMCV2#199608

53737BSEAL, FRONT FENDER APRON, LH

main53737-33010iMCV2#199608

55101PANEL SUB-ASSY, DASH

main55101-33220iMCV2#199608-199812

main55101-33221iMCV2#199812

55210INSULATOR ASSY, DASH PANEL

main55210-33050iMCV2#199608-199901

main55210-33051iMCV2#199901

55217ARETAINER, DASH PANEL SILENCER

main55217-32010×3iMCV2#199608

55223AINSULATOR, DASH PANEL, OUTER

main55223-33060iMCV2#199608-199902

main55223-33061iMCV2#199902

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-33010iMCV2#199608

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-33010×3iMCV2#199608

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33010×2iMCV2#199608

sub55239-33020

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33020iMCV2#199708-200006

PLANT NO.A41-A42,TMC(TSUTSUMI)

main57104-33030iMCV2#199708-200006

PLANT NO.Q11,TMK

57163AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH

main57163-33020iMCV2#199608-199908

57164AREINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH

main57164-33020×2iMCV2#199908

9011906050

main90119-06050

9011906680

main90119-06680

9011908A32

main90119-08A32

9017906158

main90179-06158

9017908206

main90179-08206

9033325003

main90333-25003

9033330008

main90333-30008

904670705922

main90467-0705922

9046707164

main90467-07164

9046708056C0

main90467-08056C0

9046708089

main90467-08089

9046708185

main90467-08185

9046714015

main90467-14015

9090467008

main90904-67008

9095001511

main90950-01511

9095001539

main90950-01539

9095001871

main90950-01871

9162140614

main91621-40614

50 parts on this diagram · 1 diagram in section
