Toyota WINDOM — FRONT DOOR PANEL & GLASS

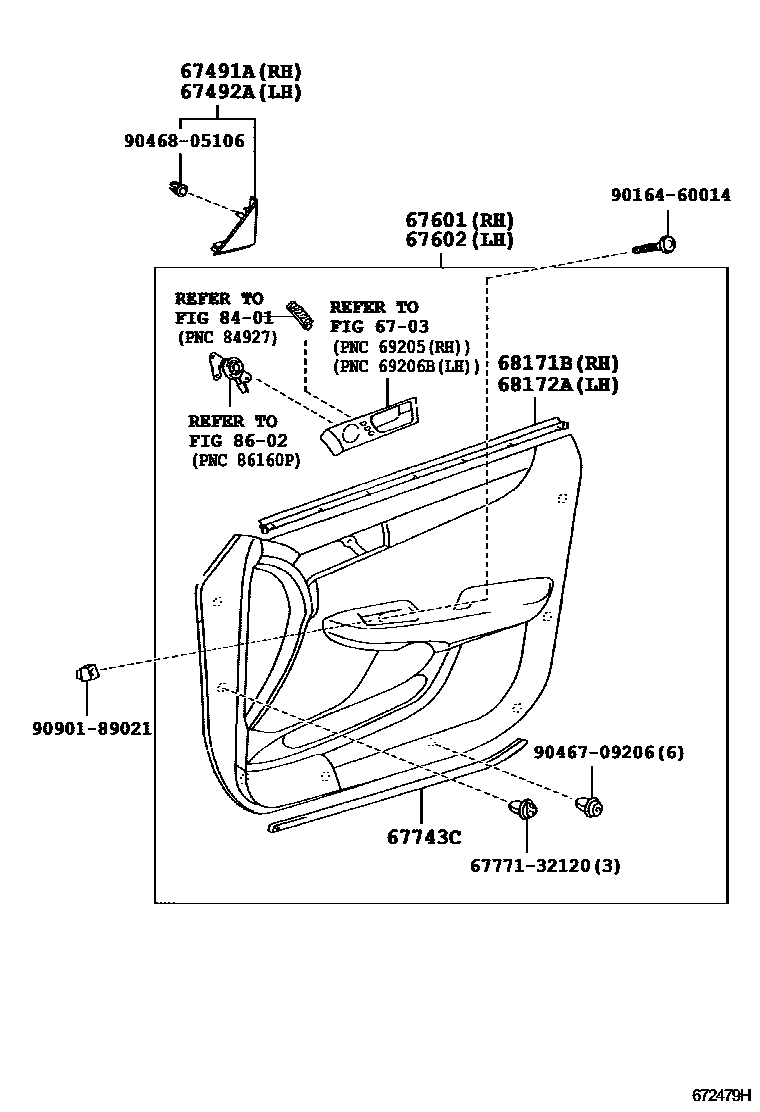

Parts diagram

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-33100i200107-200406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-33100i200107-200406

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-33A60-A2i200406-200603

IVORY,TRIM0#

main67610-33A60-C2i200406-200603

BLACK,TRIM2#

main67610-33A70-A2i200406-200603

main67610-33A70-C2i200406-200603

main67610-3T070-A0i200107-200402

IVORY,TRIM0#

main67610-3T070-C2i200107-200402

BLACK,TRIM2#

main67610-3T071-A1i200402-200403

IVORY,TRIM0#

main67610-3T071-C3i200402-200403

BLACK,TRIM2#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-33A60-A2i200406-200603

IVORY,TRIM0#

main67620-33A60-C2i200406-200603

BLACK,TRIM2#

main67620-3T080-A0i200107-200402

IVORY,TRIM0#

main67620-3T080-C2i200107-200402

BLACK,TRIM2#

main67620-3T081-A1i200404-200406

IVORY,TRIM0#

main67620-3T081-C3i200404-200406

BLACK,TRIM2#

67743CSEAL, FRONT DOOR TRIM

main67743-33021×2i200402-200406

main67743-33030-A0×2i200107-200402

IVORY,TRIM0#

main67743-33030-C0×2i200107-200402

BLACK,TRIM2#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-33050i200107-200406

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-33060i200107-200406

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8602SPEAKER

→ Go to FIG 86-02

6777132120WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32120

9016460014

main90164-60014

9046709206

main90467-09206

9046805106

main90468-05106

9090189021

main90901-89021

15 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota WINDOM

This section contains 46 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota WINDOM. Key components include: HOLE PLUG, PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, FRONT DOOR LOCK & HANDLE, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
