Toyota WINDOM — FRONT DOOR PANEL & GLASS

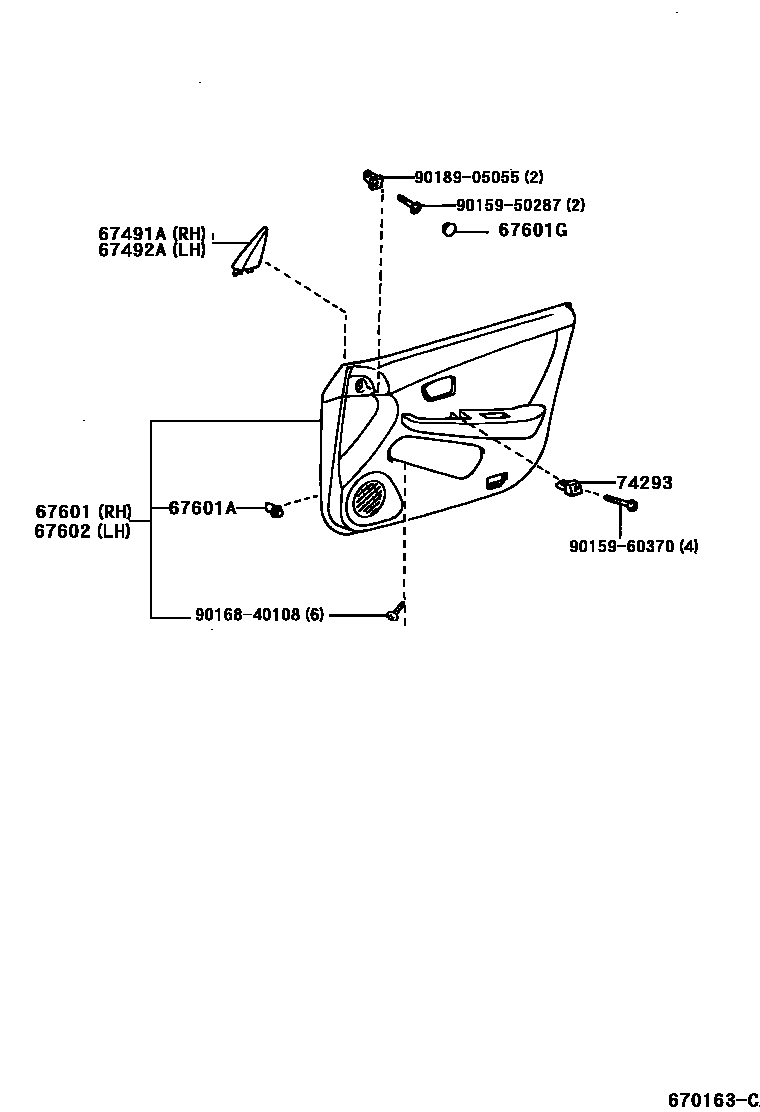

Parts diagram

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-33070i199608

main67491-33080i199608-199908

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-33070i199608

main67492-33080i199608-199908

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-33770-C0i199608-199805

BLACK,TRIM2#

main67610-33770-G0i199608-199805

SAGE,TRIM6#

main67610-33780-C0i199608-199908

main67610-33780-G0i199608-199908

main67610-33790-A0i199608-199808

main67610-33790-A2i199908-200107

main67610-33790-C0i199808-199908

main67610-33790-C4i200101-200105

main67610-33790-G0i199808-199908

main67610-33790-G4i199908-200107

main67650-33100-C2i199908-200107

BLACK,TRIM2#

main67650-33100-G1i199908-200107

DK.SAGE,TRIM6#

main67650-33170-A0i199902-199904

main67650-33170-C0i199908-200107

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050×14i199608

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-C0×2i199908

BLACK,TRIM2#

main90950-01800-E1×2i199808

OAK,TRIM0#

main90950-01800-G2×2i199608

DK. SAGE,TRIM6#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-33720-C0i199608-199805

BLACK,TRIM2#

main67620-33720-G0i199608-199805

SAGE,TRIM6#

main67620-33730-C0i199608-199908

main67620-33730-G0i199608-199908

main67620-33740-A0i199808-199908

main67620-33740-A2i199908-200107

main67620-33740-C0i199608-199808

main67620-33740-C4i200101-200105

main67620-33740-G0i199808-199908

main67620-33740-G4i199908-200107

main67660-33020-C2i199908-200107

BLACK,TRIM2#

main67660-33020-G1i199908-200107

DK.SAGE,TRIM6#

main67660-33090-A0i199902-199904

main67660-33090-C0i199908-200107

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010×2i199608

9015950287

main90159-50287

9015960370

main90159-60370

9016840108

main90168-40108

9018905055

main90189-05055

11 parts on this diagram · 2 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota WINDOM

This section contains 46 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota WINDOM. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PLATE, FRONT DOOR WINDOW OPENING, INNER RH, PLATE, FRONT DOOR WINDOW OPENING, INNER LH, GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH.
