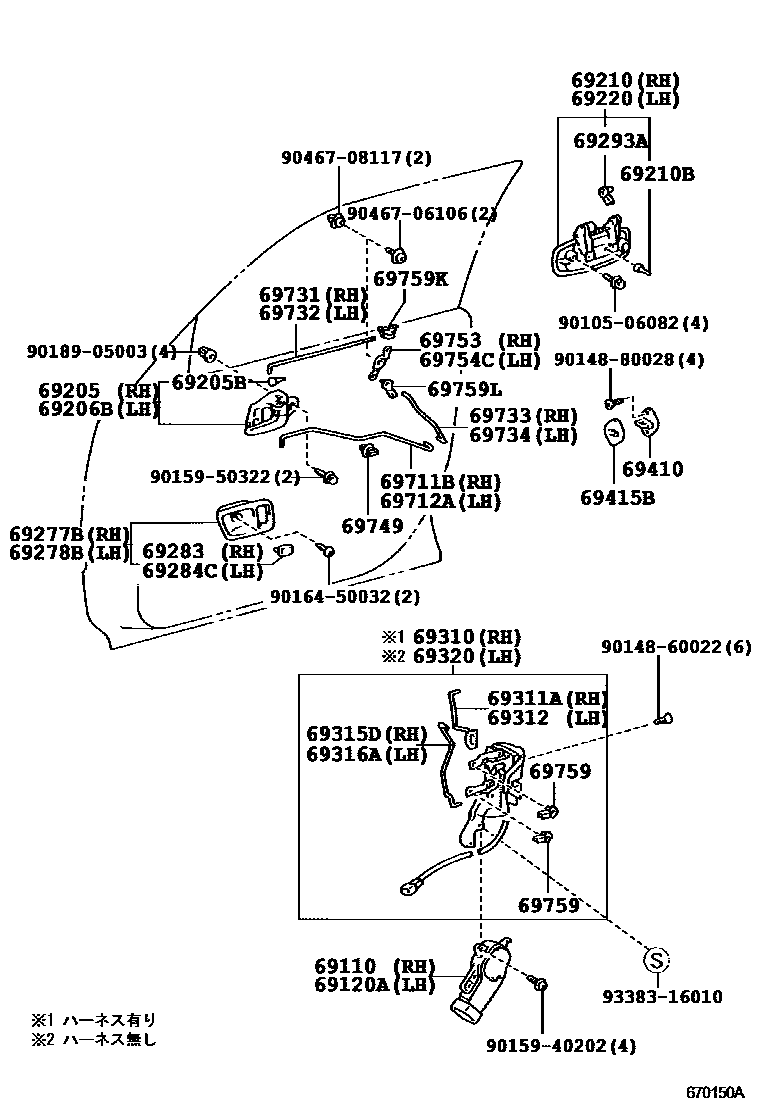

Toyota WINDOM — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SU.WHITE PM,051
SILVER ME,199
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
FLAXEN MM,4M7
DK.GREEN M.M.,6P2
DK.GREEN MC.P.I.O.,6N9
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8L3
SU. WHITE PM.,051
DK.GRAY M.M.,1C6
DK.GREEN MC.P.I.O.,6N9
GRAYISH GREEN M.M.OP,6R6
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SU.WHITE PM,051
SILVER ME,199
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
FLAXEN MM,4M7
DK.GREEN M.M.,6P2
DK.GREEN MC.P.I.O.,6N9
GRAYISH GREEN M.M.OP,6R6
DK.BLUE M.M.,8L3
SU. WHITE PM.,051
DK.GRAY M.M.,1C6
DK.GREEN MC.P.I.O.,6N9
GRAYISH GREEN M.M.OP,6R6
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69749CLAMP, FRONT DOOR LOCK LINK
69753BELLCRANK, DOOR LOCK CONTROL, RH
69754CBELLCRANK, DOOR LOCK CONTROL, LH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759KSNAP, DOOR LOCK CONTROL LINK
9010506082
main90105-06082
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9015950322
main90159-50322
9016450032
main90164-50032
9018905003
main90189-05003
9046706106
main90467-06106
9046708117
main90467-08117
9338316010
main93383-16010
43 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota WINDOM
This section contains 43 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota WINDOM. Key components include: ACTUATOR ASSY, FRONT DOOR LOCK, RH, ACTUATOR ASSY, FRONT DOOR LOCK, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
