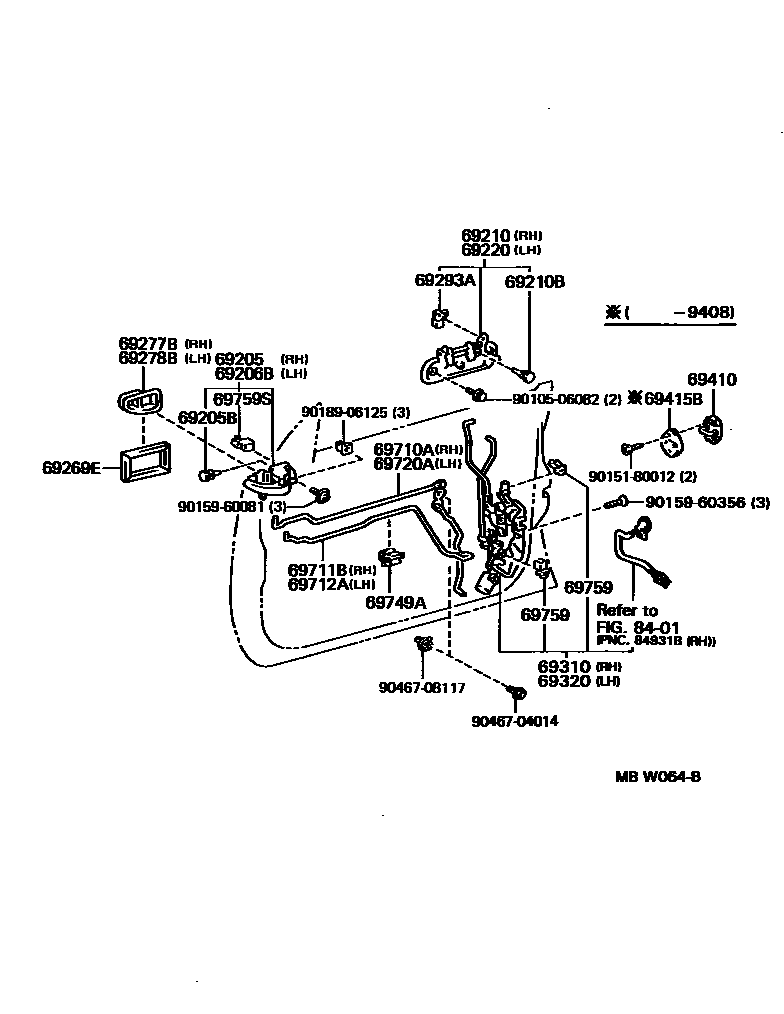

Toyota WINDOM — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
IVORY,TRIM0#
TAUPE,TRIM9#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
IVORY,TRIM0#
TAUPE,TRIM9#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
2.5 LEXTER,SUPER WHITE PEARL MC,051
SUPER WHITE PEARL MC,051
2.5 LEXTER,SUPER SILVER 3,176
BLACK,202
DK.MAUVE MC M,3K1
RED MC,3K3
LT.GRAYISH ROSE M OP,3K7
BEIGE MC,4J1
BEIGE ME,4M9
DK.GREEN MC,6M1
2.5 LEXTER,DK.GREEN M.M.,6P2
DK.GREEN M.M.,6P2
DARK BLUE M.M,8K0
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE PEARL MC,051
2.5 LEXTER,SUPER WHITE PEARL MC,051
2.5 LEXTER,SUPER SILVER 3,176
BLACK TONING G,202
DK.MAUVE MC M TONING,3K1
RED MC TONING G,3K3
LT.GRAYISH ROSE M OP,3K7
BEIGE MC ME TONING G,4J1
BEIGE ME,4M9
DK.GREEN MC TONING G,6M1
DK.GREEN M.M.,6P2
2.5 LEXTER,DK.GREEN M.M.,6P2
DARK BLUE M.M,8K0
69269ESEAL, FRONT DOOR INSIDE HANDLE
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
OAK,TRIM4#
TAUPE,TRIM9#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759SSNAP, FRONT DOOR INSIDE HANDLE
8401SWITCH & RELAY & COMPUTER
9010506082
main90105-06082
9015180012
main90151-80012
9015960081
main90159-60081
9015960356
main90159-60356
9018906125
main90189-06125
9046704014
main90467-04014
9046708117
main90467-08117
29 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota WINDOM
This section contains 29 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota WINDOM. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE).
