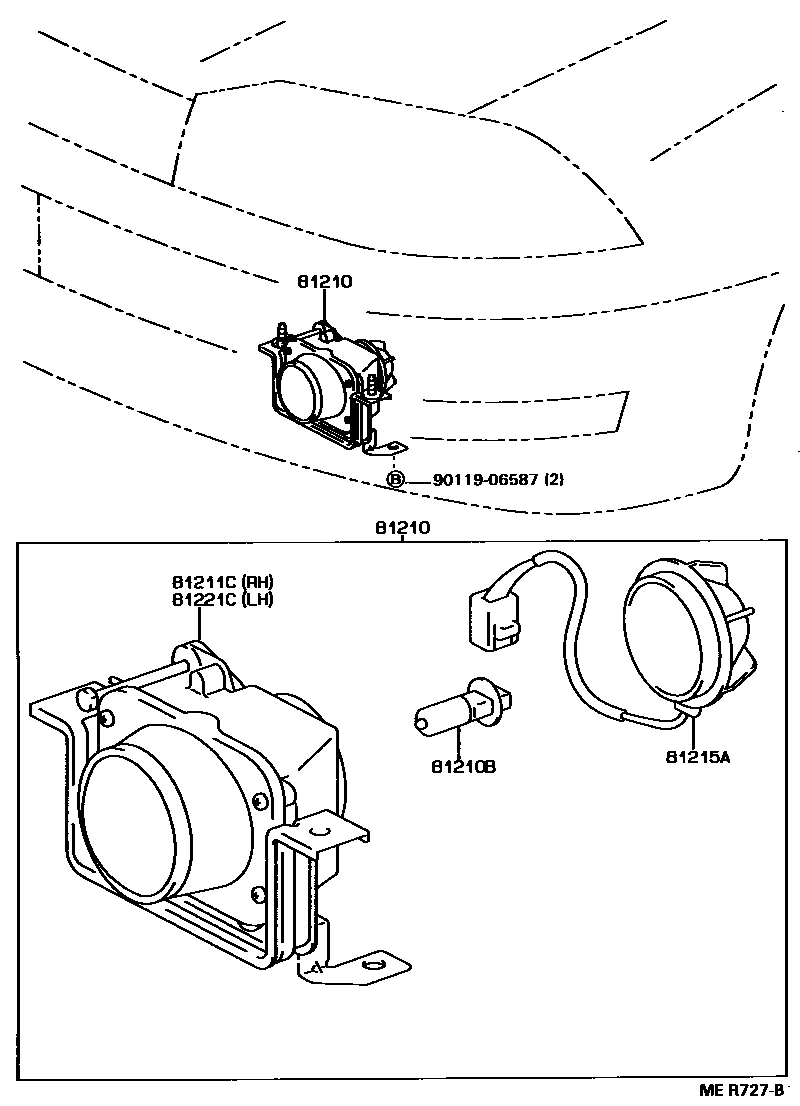

Toyota WINDOM — FOG LAMP

81210LAMP ASSY, FOG

main81210-33010i199110-199408

main81210-33040i199408-199608

main81220-33010i199110-199408

81210BBULB, FOG LAMP

main90981-13018×2i199110-199308

main90981-13048×2i199308-199408

main90981-13071×2i199408-199608

81211CLAMP UNIT, FOG LAMP, RH

main81211-33010i199110-199408

main81211-33040i199408-199608

81215ASOCKET & WIRE, FOG LAMP

main81215-33010×2i199110-199408

main81215-33040×2i199408-199608

81221CLAMP UNIT, FOG LAMP, LH

main81221-33010i199110-199408

main81221-33040i199408-199608

9011906587

main90119-06587

6 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota WINDOM

This section contains 8 genuine Toyota parts for the FOG LAMP system of the Toyota WINDOM. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, SOCKET & WIRE, FOG LAMP, LAMP ASSY, FOG, LH.
