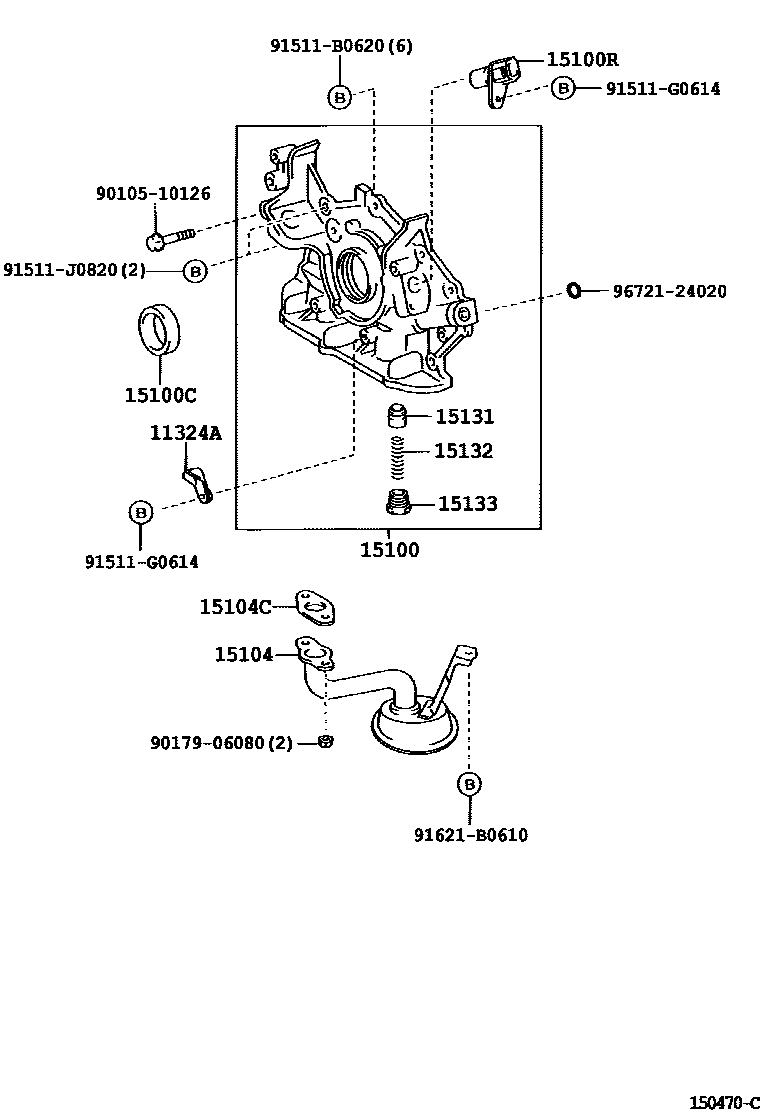

Toyota WINDOM — ENGINE OIL PUMP

11324APLATE, TIMING BELT

main11324-20010i200107-200406

15100PUMP ASSY, OIL

main15100-20050i200107-200406

15100CSEAL(FOR OIL PUMP)

main90311-40022i200107-200406

15100RSENSOR, CRANK POSITION

main90919-05012i200107-200406

15104STRAINER SUB-ASSY, OIL

main15104-20020i200107-200406

15104CGASKET(FOR OIL STRAINER)

main15147-20010i200107-200406

15131VALVE, OIL PUMP RELIEF

main15131-46040i200107-200406

15132SPRING, OIL PUMP RELIEF VALVE

main15132-46020i200107-200406

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i200107-200406

9010510126

main90105-10126

9017906080

main90179-06080

91511B0620

main91511-B0620

91511G0614

main91511-G0614

91511J0820

main91511-J0820

91621B0610

main91621-B0610

9672124020

main96721-24020

16 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota WINDOM

This section contains 16 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota WINDOM. Key components include: PLATE, TIMING BELT, PUMP ASSY, OIL, SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION, STRAINER SUB-ASSY, OIL.
