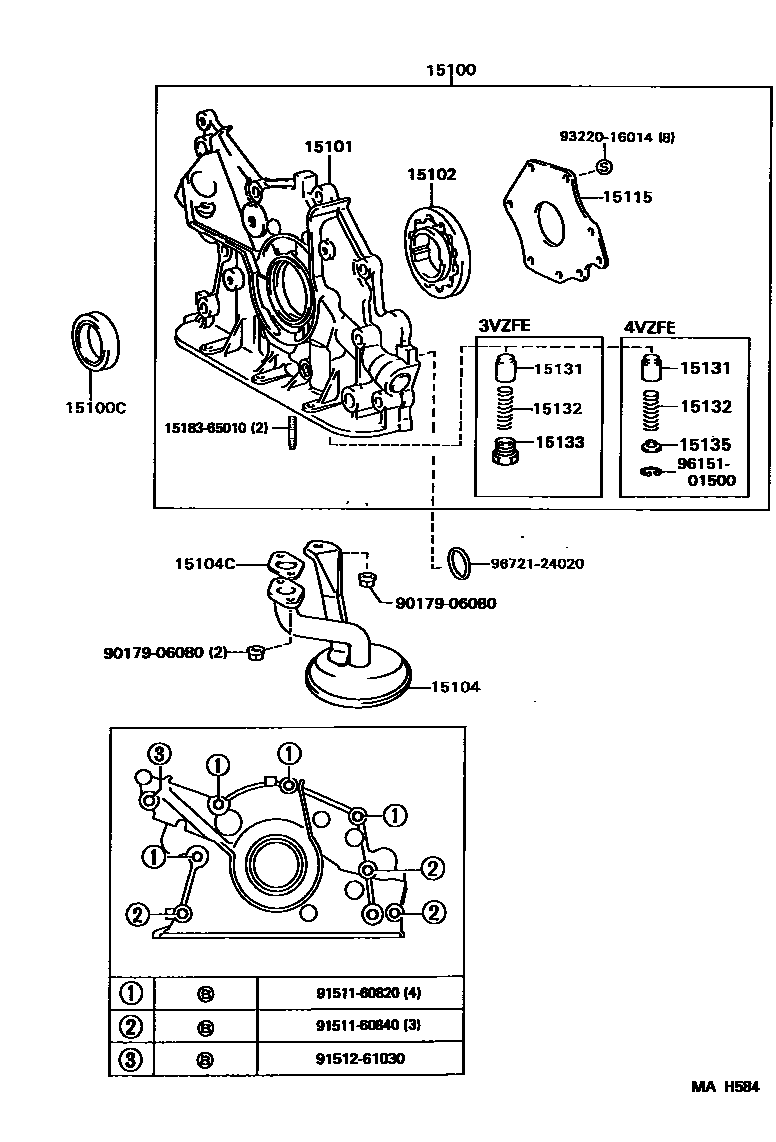

Toyota WINDOM — ENGINE OIL PUMP
15100PUMP ASSY, OIL
15100CSEAL(FOR OIL PUMP)
15101BODY SUB-ASSY, OIL PUMP
15102ROTOR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15104CGASKET(FOR OIL STRAINER)
15115COVER, OIL PUMP
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15135RETAINER, OIL PUMP RELIEF VALVE
1518365010BOLT, UNION(FOR OIL PUMP)
main15183-65010
9017906080
main90179-06080
9151160820
main91511-60820
9151160840
main91511-60840
9151261030
main91512-61030
9322016014
main93220-16014
9615101500
main96151-01500
9672124020
main96721-24020
19 parts on this diagram · 1 diagram in section
ENGINE OIL PUMP for Toyota WINDOM
This section contains 19 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota WINDOM. Key components include: PUMP ASSY, OIL, SEAL(FOR OIL PUMP), BODY SUB-ASSY, OIL PUMP, ROTOR SET, OIL PUMP, STRAINER SUB-ASSY, OIL.
