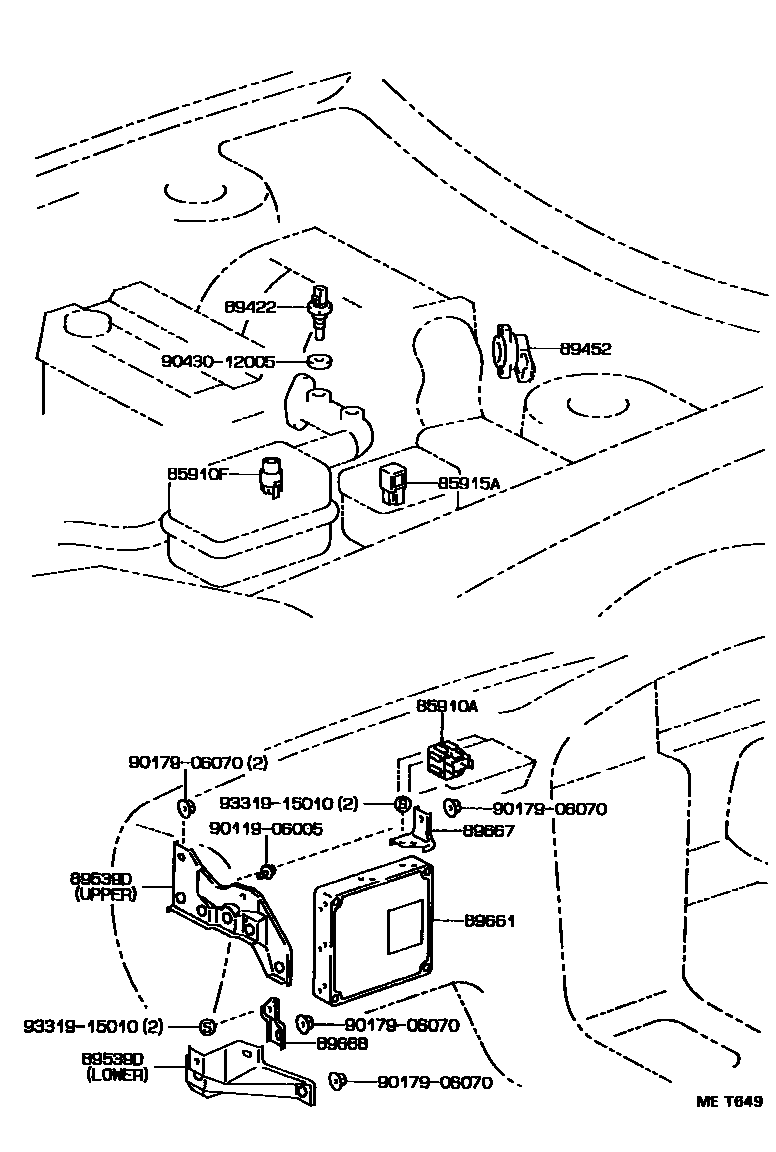

Toyota WINDOM — ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-22040i199110-199608

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004i199110-199308

main90987-02009i199308-199608

85915ARELAY, MAIN

main90987-04003i199110-199608

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010i199110-199608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-32060i199110-199608

89539DBRACKET, COMPUTER

main89539-33010i199110-199308

UPPER

main89539-33020i199110-199308

LOWER

main89539-33060i199308-199408

UPPER

main89539-33070i199308-199408

LOWER

89661COMPUTER, ENGINE CONTROL

main89661-33200i199110-199408

main89661-33320i199308-199608

main89661-33470i199408-199608

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33020i199110-199608

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33030i199110-199608

9011906005

main90119-06005

9017906070

main90179-06070

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota WINDOM

This section contains 13 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota WINDOM. Key components include: RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), RELAY, MAIN, SENSOR, WATER TEMPERATURE (FOR E.F.I.), SENSOR, THROTTLE POSITION (FOR E.F.I.).
