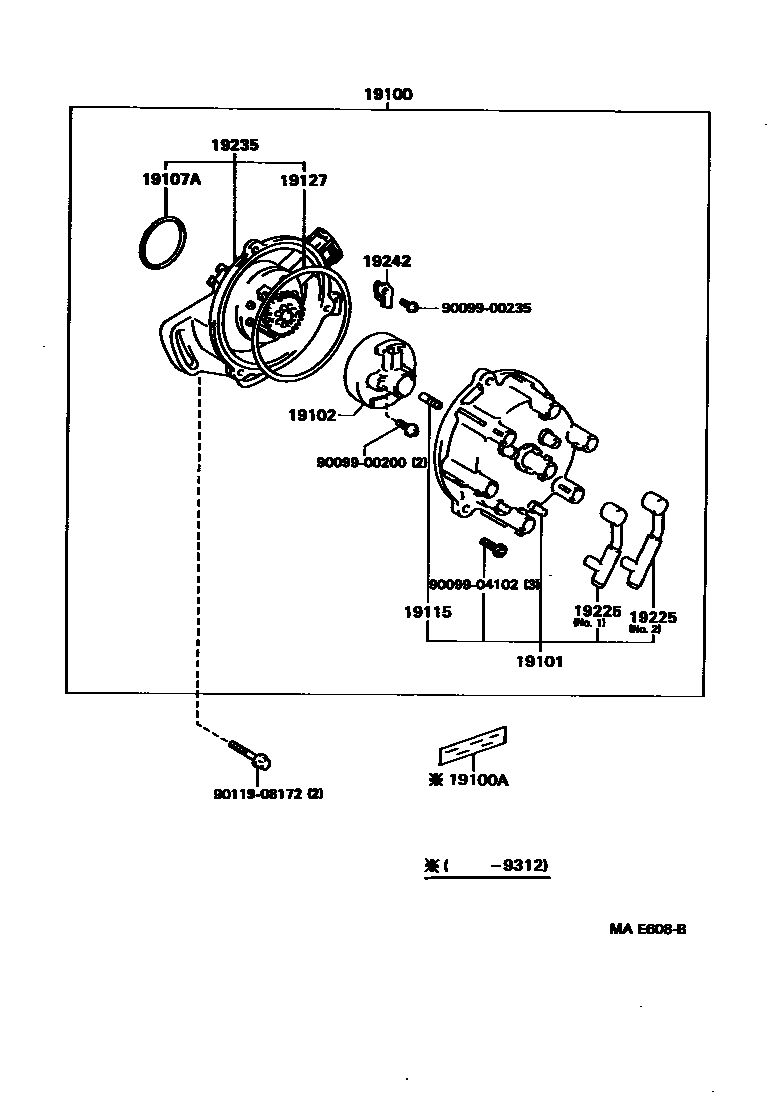

Toyota WINDOM — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-62050i3VZFE,4VZFE..VCV1#199110-199608

19100ATAPE, SEALING

main90919-24004i3VZFE,4VZFE..VCV1#199308-199312

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-62050i3VZFE,4VZFE..VCV1#199110-199608

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-62030i3VZFE,4VZFE..VCV1#199110-199608

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14089i3VZFE,4VZFE..VCV1#199110-199608

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i3VZFE,4VZFE..VCV1#199110-199608

19127PACKING, DUST PROOF

main19127-61240i3VZFE,4VZFE..VCV1#199110-199608

19225CAP, RUBBER

main19225-62050i3VZFE,4VZFE..VCV1#199110-199608

main19225-62060i3VZFE,4VZFE..VCV1#199110-199608

19235HOUSING, DISTRIBUTOR

main19235-62050i3VZFE,4VZFE..VCV1#199110-199608

19242CLAMP, CORD

main19242-62030i3VZFE,4VZFE..VCV1#199110-199608

9009900200

main90099-00200

9009900235

main90099-00235

9009904102

main90099-04102

9011908172

main90119-08172

14 parts on this diagram · 1 diagram in section
