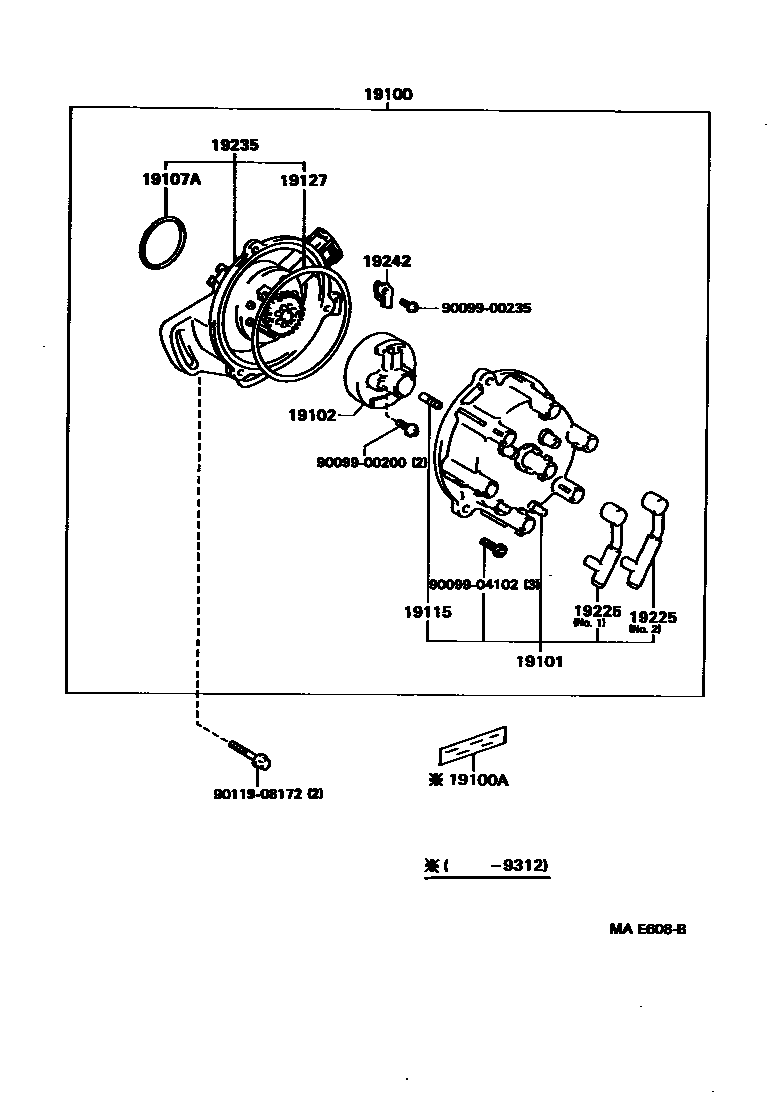

Toyota WINDOM — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19100ATAPE, SEALING
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19127PACKING, DUST PROOF
19225CAP, RUBBER
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
9009900200
main90099-00200
9009900235
main90099-00235
9009904102
main90099-04102
9011908172
main90119-08172
14 parts on this diagram · 1 diagram in section
DISTRIBUTOR for Toyota WINDOM
This section contains 14 genuine Toyota parts for the DISTRIBUTOR system of the Toyota WINDOM. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
