Toyota WINDOM — CRUISE CONTROL (AUTO DRIVE)

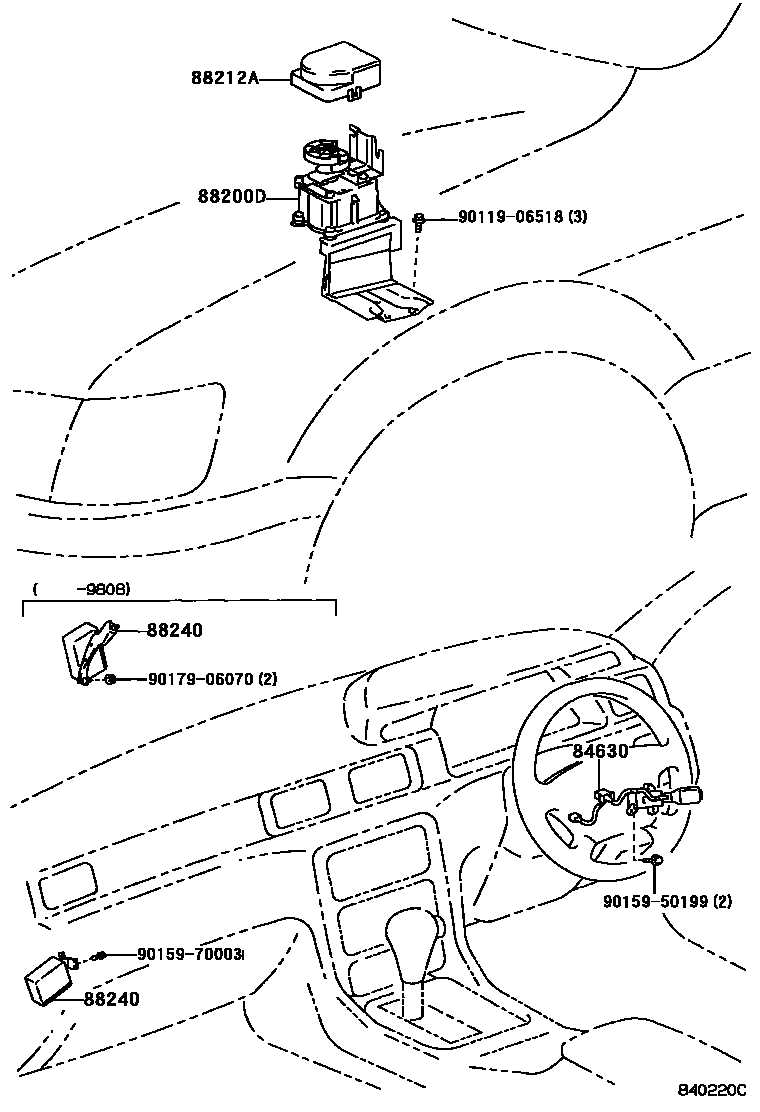

Parts diagram

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-06030i199608-199805

main84630-0W010i199805

main84630-33060i199808

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-33030i199608

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-33010i199608

88240COMPUTER ASSY, CRUISE CONTROL

main88240-33080i199608-199808

main88240-33120i199808

9011906518

main90119-06518

9015950199

main90159-50199

9015970003

main90159-70003

9017906070

main90179-06070

8 parts on this diagram · 1 diagram in section

CRUISE CONTROL (AUTO DRIVE) for Toyota WINDOM

This section contains 8 genuine Toyota parts for the CRUISE CONTROL (AUTO DRIVE) system of the Toyota WINDOM. Key components include: SWITCH ASSY, CRUISE CONTROL MAIN, ACTUATOR ASSY, CRUISE CONTROL, COVER, CRUISE CONTROL ACTUATOR, COMPUTER ASSY, CRUISE CONTROL.
