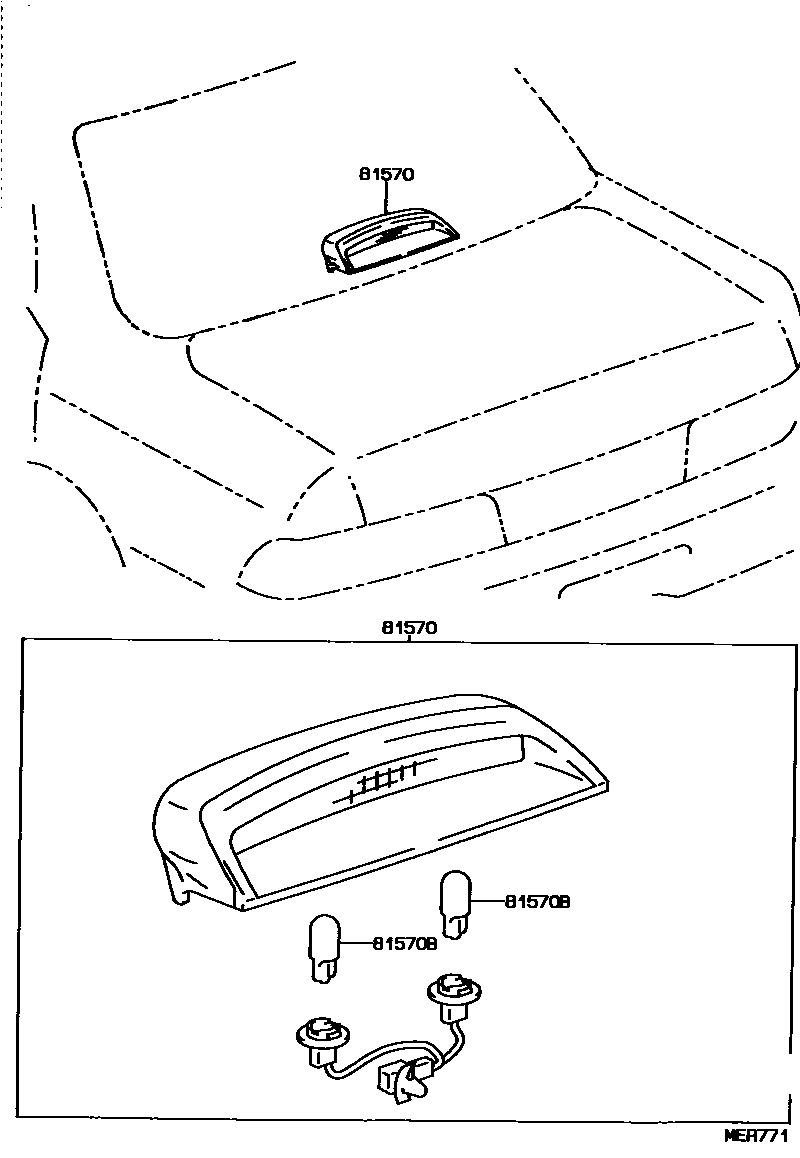

Toyota WINDOM — CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-33030-01i199110-199408

BLACK,TRIM2#

main81570-33030-02i199110-199408

TAUPE,TRIM9#

main81570-33030-05i199110-199308

GREIGE,TRIM0#

main81570-33030-22i199408-199608

BLACK,TRIM2#

main81570-33030-E0i199308-199408

OAK,TRIM4#

main81570-33030-K0i199408-199608

TAUPE,TRIM9#

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039×2i199110-199608

2 parts on this diagram · 1 diagram in section

CENTER STOP LAMP for Toyota WINDOM

This section contains 2 genuine Toyota parts for the CENTER STOP LAMP system of the Toyota WINDOM. Key components include: LAMP ASSY, CENTER STOP, BULB (FOR CENTER STOP LAMP).
