Toyota WINDOM — BACK UP LAMP

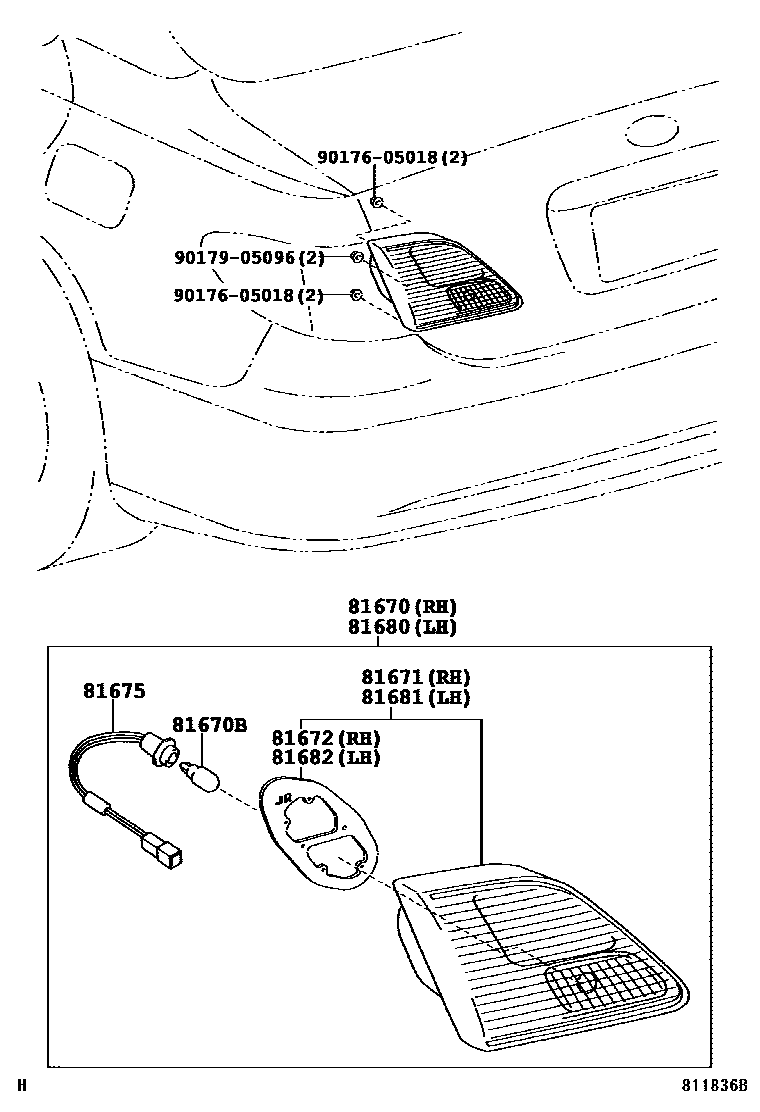

Parts diagram

81670LAMP ASSY, BACK-UP, RH

main81580-33100i200406-200408

main81580-33110i200406-200408

main81670-33200i200107-200406

main81670-33210i200107-200406

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2i200107-200406

main90981-13043×2i200406-200408

main99132-12050×2i200406-200408

81671LENS, BACK-UP LAMP, RH

main81581-33100i200406-200603

main81581-33110i200406-200603

main81671-33200i200107-200406

main81671-33210i200107-200406

81672GASKET, BACK-UP LAMP LENS, RH

main81584-33100i200406-200409

main81672-33170i200107-200406

81675SOCKET & WIRE, BACK-UP LAMP

main81585-33100×2i200406-200409

main81585-33101×2i200409

main81585-33110×2i200406-200409

main81585-33111×2i200409

main81675-33200×2i200107-200406

main81675-33210×2i200107-200406

81680LAMP ASSY, BACK UP, LH

main81590-33100i200406-200408

main81590-33110i200406-200408

main81680-33160i200107-200406

main81680-33170i200107-200406

81681LENS, BACK-UP LAMP, LH

main81591-33100i200406-200603

main81591-33110i200406-200603

main81681-33160i200107-200406

main81681-33170i200107-200406

81682GASKET, BACK UP LAMP LENS, LH

main81594-33100i200406-200409

main81682-33150i200107-200406

9017605018

main90176-05018

9017905096

main90179-05096

10 parts on this diagram · 4 diagrams in section

BACK UP LAMP for Toyota WINDOM

This section contains 11 genuine Toyota parts for the BACK UP LAMP system of the Toyota WINDOM. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, SOCKET & WIRE, BACK-UP LAMP.
