Toyota WINDOM — BACK UP LAMP

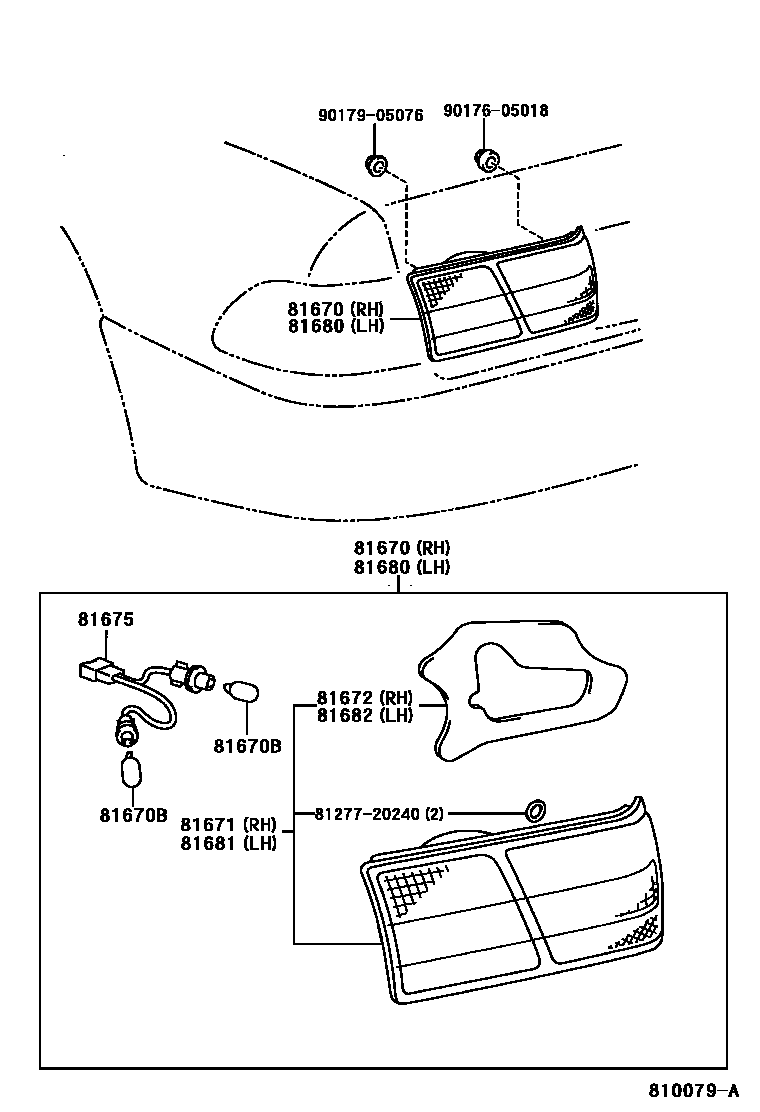

Parts diagram

81670LAMP ASSY, BACK-UP, RH

main81580-33080i199908

main81670-33130i199608-199908

main81670-33160i199908

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2i199908

main90981-13043×2i199608-199908

main99132-12050×2i199608

81671LENS, BACK-UP LAMP, RH

main81581-33080i199908

main81671-33130i199608-199908

main81671-33160i199908

81672GASKET, BACK-UP LAMP LENS, RH

main81672-33130i199608-199908

main81674-33160i199908

81675SOCKET & WIRE, BACK-UP LAMP

main81675-33130×2i199608-199908

main81675-33160×2i199908

81680LAMP ASSY, BACK UP, LH

main81680-33070i199908

main81680-33100i199608-199908

81681LENS, BACK-UP LAMP, LH

main81681-33070i199908

main81681-33100i199608-199908

81682GASKET, BACK UP LAMP LENS, LH

main81672-33130i199608-199908

main81674-33160i199908

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9017605018

main90176-05018

9017905076

main90179-05076

11 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota WINDOM

This section contains 11 genuine Toyota parts for the BACK UP LAMP system of the Toyota WINDOM. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, SOCKET & WIRE, BACK-UP LAMP.
