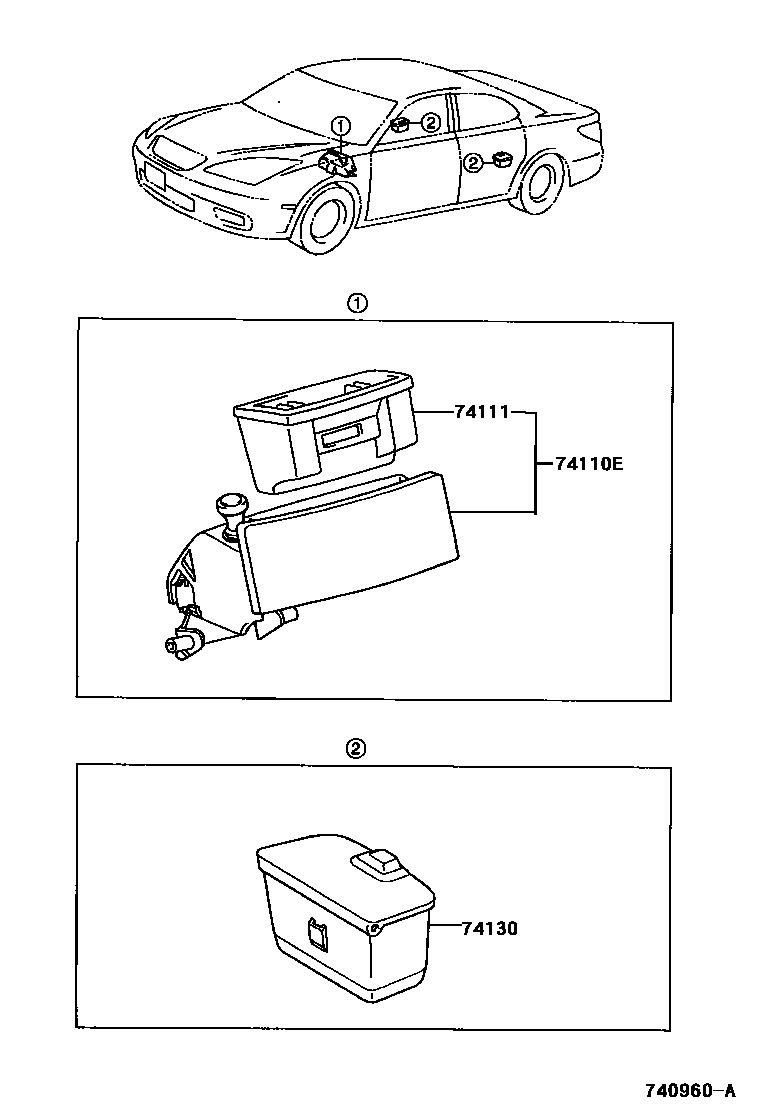

Toyota WINDOM — ASH RECEPTACLE

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33180i200107-200406

main74110-33250-D0i200406-200603

REDDISH BROWN,TRIM2#

main74110-33250-E2i200406-200603

LIGHT BROWN,TRIM0#

74111BOX, FRONT ASH RECEPTACLE

main74111-33040i200406-200603

74130RECEPTACLE ASSY, REAR ASH

main74130-33020-A0×2i200107-200406

IVORY,TRIM0#

main74130-33020-A1×2i200406-200603

IVORY,TRIM0#

main74130-33020-C0×2i200107-200406

BLACK,TRIM2#

3 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota WINDOM

This section contains 3 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota WINDOM. Key components include: RECEPTACLE ASSY, FRONT ASH, BOX, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH.
